Release Net Wrap Feed Roll Brake

E48357
E48357-UN-12JUL00

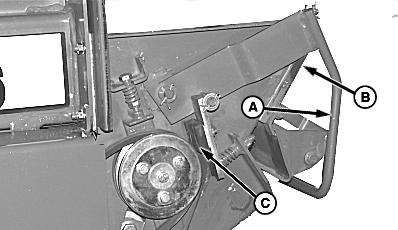

A - Brake Lever

B - Latch

C - Brake Pad

The manual brake release disengages the net feed rolls. Release the brake when threading net wrap or servicing the net wrap unit.

  1. Disengage tractor PTO, shut off tractor engine, and disconnect monitor-controller power plug from tractor convenience outlet.

  2. Open net wrap cover.

  3. Pull lever (A) out and up and rest on latch (B) to disengage roller brake pad (C).

  4. To engage net wrap brake, return lever (A) to engaged position. Check that pad (C) contacts belt pulley.

  5. Close net wrap cover.

  6. Reconnect monitor-controller power plug to tractor convenience outlet.
