Check Hole Wear in Surface Wrap Side Panel

Hole wear in surface wrap side panel causes a reduction in brake torque.

  1. Open net wrap cover.

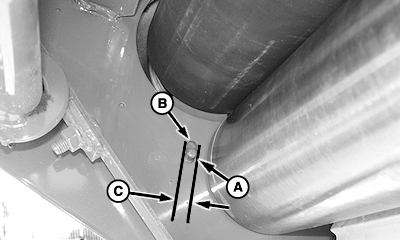

  2. E56760
    E56760-UN-09FEB09

    A - Pin

    B - Slotted Hole

    C - Slotted Hole Width

    Perform visual check of rubber feed roll bearing support pin (A) wear in slotted hole (B) on left- and right-hand side panels.


  3. If slotted hole width (C) is over 8 mm (0.32 in.), weld key stock to side panels. (See your John Deere dealer.)
