Load B-Wrap Material

1. CAUTION: Avoid injury from entanglement in moving rolls. Disengage PTO, shut off tractor engine, and disconnect monitor-controller power plug from tractor convenience outlet before servicing.


   E40200-UN-08JUL96


   E69417-UN-13FEB13

   A - B-Wrap Material

   B - Striped End

   Open net wrap cover.

---




2. Swing lower tension arm out.

3. NOTE: Metal strip within B-Wrap material must be on left-hand side of baler.

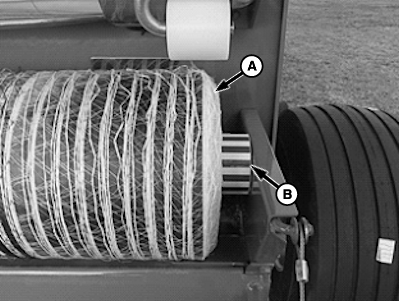

   Before loading B-Wrap material (A), make sure that striped end (B) is facing to the right-hand side. Place B-Wrap roll at loading position.

4. Place free end of B-Wrap from top of roll between net frame and cross-member and rubber roll.

5. Lift lower tension arm, placing B-Wrap roll in operating position.

6.
   E55136-UN-07MAY07

   A - B-Wrap

   B - Net Wrap Roll

   C - Rubber Roll

   D - Steel Roll

   E - Distance, 12—25 mm (1/2—1 in.) B-Wrap Extension

   Thread B-Wrap (A), as illustrated, around net wrap roll (B) and rubber roll (C).

---




7. Extend B-Wrap (A) no more than 12—25 mm (1/2—1 in.) (E) between rubber roll (C) and steel roll (D).

   NOTE: Maximum length is 25 mm (1 in.), any longer can cause wrapping.

8.
   E48893-UN-07SEP00

   A - Lever

   B - Brake Pad

   Pull lever (A) out and back to disengage roller brake pad (B).

---




9. IMPORTANT: Do not thread more than 25 mm (1 in.) of loop between the two rolls or it can cause material to wrap around the rolls.

   IMPORTANT: Avoid knife contact with rubber roll. Any knife cuts in rubber roll covering can result in more frequent wrapping around rolls and can require roll replacement.

   NOTE: If B-Wrap is not being pulled off front face of roll, B-Wrap roll has been installed backwards. (See Steps 2—5 for correction installation.)


   E48305-UN-06JUL00

   A - Lever

   B - Material

   Gather the loose ends of B-Wrap together:
   • Twist material (B) and make a loop.
   • Thread the loop between rolls.
   • Reengaging the brake lever (A) will turn rubber roll and start B-Wrap between two rolls.
   • Engage and disengage brake lever about three times to advance B-Wrap through feed roll.



---




10.
    E48893-UN-07SEP00

    A - Lever

    B - Brake Pad

    Pull lever (A) out and push forward toward front of machine. Make sure that brake pad (B) contacts belt pulley.

---




11. Cut excess material off.

12. Close net wrap cover.

13. To avoid material wrapping rubber roll, release brake lever and reset brake before using the baler at the beginning of each day.

14. Adjust net wrap feed roll brake tension. (See CHECK AND ADJUST NET WRAP FEED ROLL BRAKE in Service—Net Wrap section of the Operator’s Manual.)
