Inspect and Clean Crankcase Breather Tube

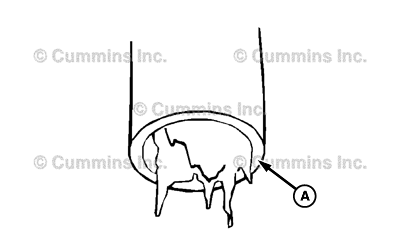

  1. E69404
    E69404-UN-19FEB13

    A - Debris

    Inspect crankcase breather tube for sludge, debris or ice buildup inside tube.

    NOTE: In extreme operating conditions more frequent inspections are required.


  2. If sludge, debris, or ice is found in tube clean with detergent and warm water or solvent.

  3. Dry crankcase breather tube with compressed air.

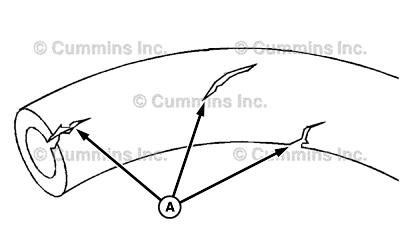

  4. E69405
    E69405-UN-19FEB13

    A - Cracks

    Inspect crankcase breather tube for internal and external cracks. If any cracks are found replace tube.

GW44282,0000006-19-20130219
