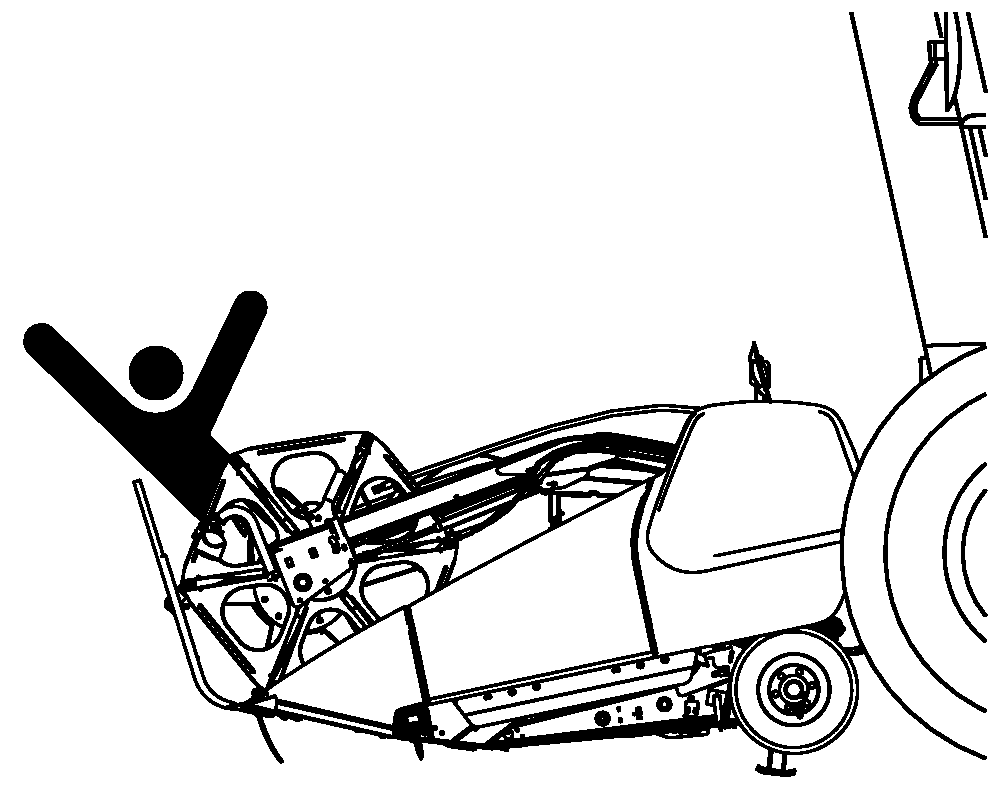

Stay Clear of Platform

E57580-UN-14JUL09

Many moving parts such as the platform reel, cutterbar, conditioner rolls and augers cannot be completely shielded due to their function.

Stay clear of these moving parts during operation!

Before servicing or manually unplugging the platform:

1. Park windrower on level surface.
2. Put hydrostatic drive lever in neutral park.
3. Check to see that the steering wheel is centered and locked.
4. Always disengage platform drive.
5. Wait until all moving parts have stopped.
6. Lower platform to the ground, or raise platform fully and engage platform lift lockout levers to prevent accidental lowering.
7. Idle hot engine for three to five minutes prior to shut down.
8. Turn off engine and remove key.
9. Block both sides of front tires or rear tires as required.
10. Release float pressure and remove battery ground as necessary.
