Practice Safe Service Procedures

Header Lift Cylinder Stops

Cylinder stops are located on both header lift cylinders on the windrower. ALWAYS engage the lift cylinder stops when working on or around a raised header. It is not recommended to work under a raised header but if the situation should become necessary, the lift cylinder stops MUST be engaged to avoid death or serious injury.

CAUTION: To prevent bodily injury or damage to machine, do the following before servicing or repairing the windrower:

  • Park on level surface.
  • Place GSL in N-Detent.
  • Check to ensure steering wheel is centered and locked.
  • Disengage platform drive.
  • Wait until all moving parts have stopped.
  • Lower the platform to the ground. If it is necessary to work underneath the platform, fully raise platform and engage header lift cylinder stops to prevent accidental lowering.
  • Idle hot engine for three to five minutes prior to shut down.
  • Turn off engine and remove key.
  • Block both sides of drive tires or rear tires as required.
  • Place master battery disconnect switch to the OFF position.
  • Disconnect the battery ground cable as required.

E65093
E65093-UN-14JUN12

E65091
E65091-UN-14JUN12

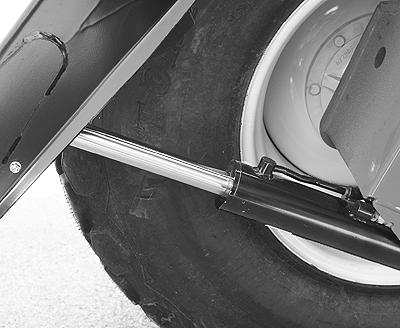

Lift Cylinder Full Up

To Engage Header Lift Cylinder Stops:

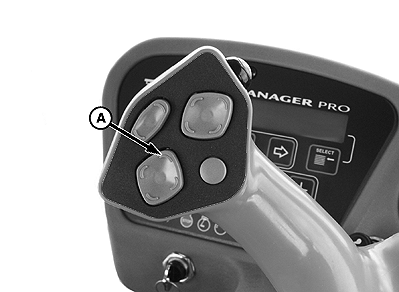

  1. Press HEADER UP switch (A) to raise header to maximum height.

    If one end of the header does NOT raise fully, the lift cylinders require re-phasing.

    To re-phase cylinders:

    1. Press and hold the HEADER UP switch (A) until both cylinders stop moving.

    2. Continue to hold the switch for 3 - 4 seconds.

      Cylinders are now phased.

    With lift cylinders at full up, the rod end of the cylinder will be fully exposed, as shown.

  2. E65094
    E65094-UN-14JUN12

    E65095
    E65095-UN-14JUN12

    E65092
    E65092-UN-14JUN12

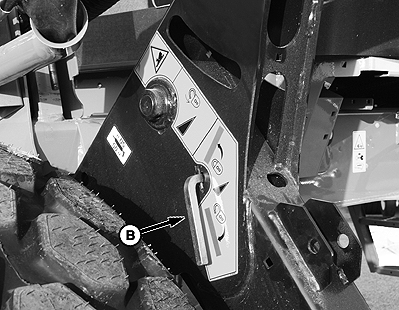

    B - Lift Cylinder Lock Lever Unlocked

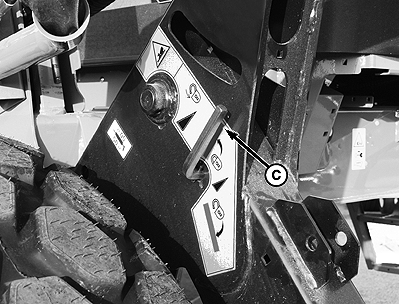

    C - Lift Cylinder Lock Lever Locked

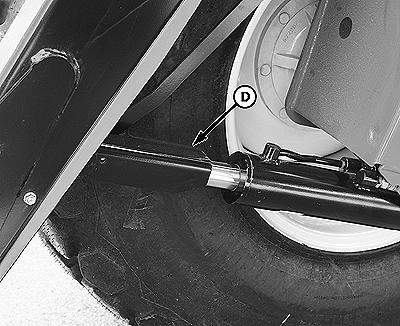

    D - Cylinder Lock in Lock Position

    Pull cylinder lock lever (B) out and rotate toward header to release and lower cylinder stop (D).

    Cylinder lock lever will now be in locked position (C).

    Repeat for both lift cylinders.


IMPORTANT: See directions on instructional decal also, for lock and unlock positions. Contact your dealer if you have any questions regarding the Lift Cylinder Lock Stops.

OUO6043,00001F8-19-20130125
