Parking Windrower

Stopping and parking the windrower should be done slowly and after allowing the engine to idle for three to five minutes to allow engine components and turbo to cool.

NOTE: W150 console is shown in graphic. Both W110 and W150 windrowers stop and park the same way.

CAUTION: Park on a firm, level surface. Place the header down onto the surface. Place the GSL in NEUTRAL-DETENT and lock the steering wheel.

  1. E61144
    E61144-UN-03APR12

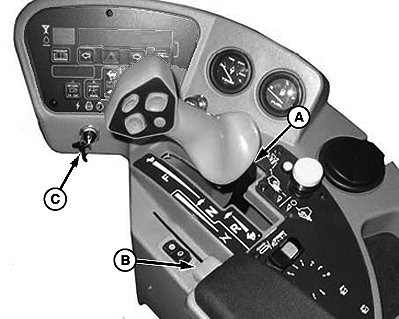

    W150 Console

    Slowly return the GSL to Neutral and then into N-DETENT (A).


  2. Turn the steering wheel until it locks.

  3. Move throttle lever to low idle (B).

    Park brakes are automatically engaged when steering wheel is locked in NEUTRAL.

  4. Turn ignition key (C) counterclockwise to OFF.

  5. Remove the key.

IMPORTANT: To prevent damage to linkage and controls, do not force multifunction control handle or steering wheel while in the locked position.

OUO6043,00001F9-19-20130125
