Engine Component Identification

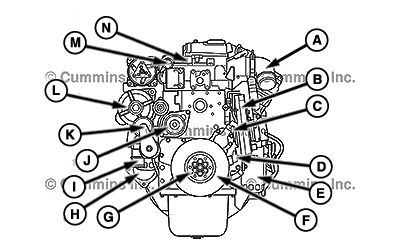

E69362-UN-30JAN13

Front View

A - Air Inlet

B - Electronic Control Module

C - Engine Speed Sensor (Camshaft)

D - Engine Speed Sensor (Crankshaft)

E - Fuel Filter

F - Vibration Damper

G - Fan or PTO Drive Flange Mounting

H - Starter Mounting Location

I - Coolant Inlet

J - Water Pump

K - Belt Tensioner

L - Alternator

M - Coolant Outlet

N - Coolant Temperature Sensor

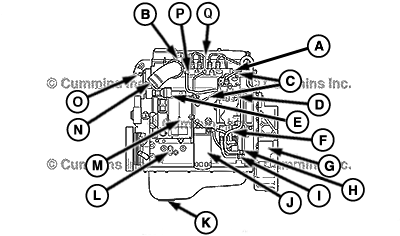

E69363-UN-30JAN13

Left-hand Side View

A - Fuel Rail Pressure Sensor

B - Intake Manifold Pressure/Temperature Sensor

C - Air Compressor Coolant Pipes (If Equipped)

D - Air Compressor (If Equipped)

E - Ambient Air Pressure Sensor

F - Fuel Pump

G - Flywheel Housing

H - Fuel Return

I - Fuel Inlet

J - Fuel Filter

K - Oil Pan Drain Plug

L - Dipstick/Oil Level Sensor

M - Electronic Control Module

N - Air Intake Inlet

O - Coolant Outlet

P - Fuel Rail Pressure Relief Valve

Q - Fuel Rail

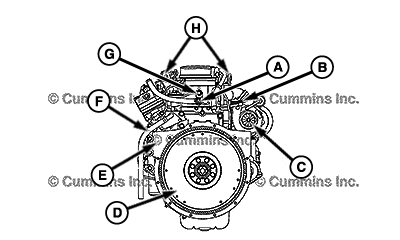

E69364-UN-30JAN13

Rear View

A - Coolant Connection For Air Compressor (If Equipped)

B - Air Outlet From Turbocharger

C - Air Inlet to Turbocharger

D - Flywheel

E - Flywheel Housing

F - Crankcase Breather Tube

G - Fuel Return Line

H - Engine Lifting Brackets

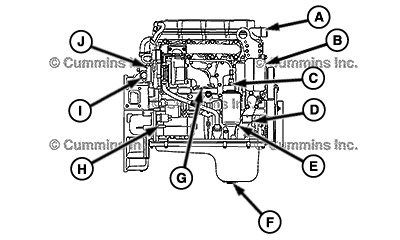

E69365-UN-30JAN13

Right-hand Side View

A - Coolant Outlet

B - Alternator

C - Oil Cooler

D - Coolant Inlet

E - Oil Filter

F - Oil Drain Plug

G - Turbocharger Exhaust Outlet

H - Starter

I - Flywheel Housing

J - Turbocharger Compressor Inlet

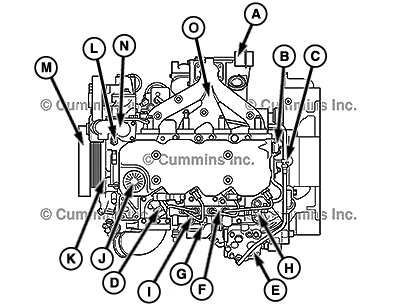

E69366-UN-30JAN13

Top View

A - Turbocharger Waste Gate Actuator

B - Cranckcase Breather

C - Air Compressor Coolant Connection (If Equipped)

D - Intake Manifold Pressure/Temperature Sensor

E - Air Compressor (If Equipped)

F - Fuel Rail

G - High-pressure Supply Line (Pump to Rail)

H - Fuel Rail Pressure Sensor

I - High-pressure Fuel Lines

J - Oil Fill Cap

K - Tone Wheel

L - Coolant Temperature Sensor

M - Vibration Damper (Optional)

N - Coolant Outlet

O - Exhaust Manifold
