Control Locks

W110

This menu allows the operator to lock out the control functions for the various header functions. The default or selected status for each item will flash.

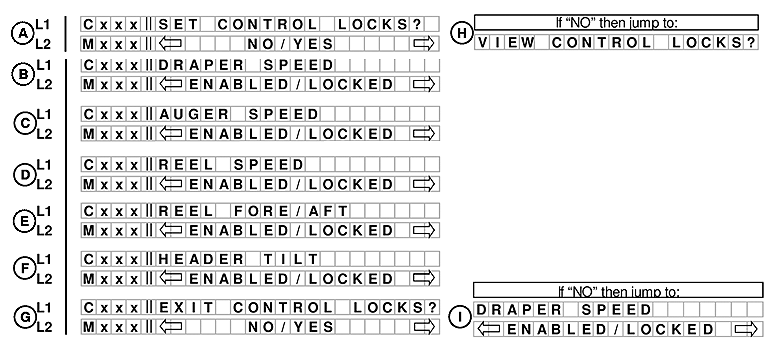

E68810-UN-23OCT12

A. Line 1 - SET CONTROL LOCKS?. Line 2 displays NO/YES option. If NO is selected menu moves to VIEW CONTROL LOCKS? (H).

B. Line 1 - DRAPER SPEED. Line 2 displays ENABLED/LOCKED.

C. Line 1 - AUGER SPEED. Line 2 displays ENABLED/LOCKED.

D. Line 1 - REEL SPEED. Line 2 displays ENABLED/LOCKED. If the expansion module is not installed the corresponding menu items should be suppressed.

E. Line 1 - REEL FORE/AFT. Line 2 displays ENABLED/LOCKED.

F. Line 1 - HEADER TILT. Line 2 displays ENABLED/LOCKED.

G. Line 1 - EXIT CONTROL LOCKS?. Line 2 displays NO/YES option.

If NO is selected menu moves back to DRAPER SPEED(I).

When the control lock outs are viewed, line 2 will show the engine hours and either ENABLED or LOCKED to indicate the present status along with the engine hours at which time the function was either ENABLED or LOCKED.

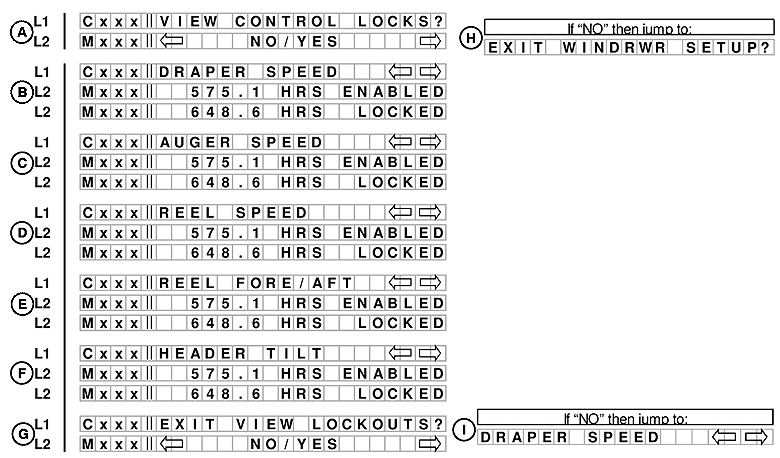

E68815-UN-23OCT12

A. Line 1 - VIEW CONTROL LOCKS?. Line 2 displays NO/YES option. If NO is selected menu moves to EXIT WINDRWR SETUP? (H).

B. Line 1 - DRAPER SPEED. Line 2 displays engine hours ENABLED or LOCKED.

C. Line 1 - AUGER SPEED. Line 2 displays engine hours ENABLED or LOCKED.

D. Line 1 - REEL SPEED. Line 2 displays engine hours ENABLED or LOCKED.

E. Line 1 - REEL FORE/AFT. Line 2 displays engine hours ENABLED or LOCKED.

F. Line 1 - HEADER TILT. Line 2 displays engine hours ENABLED or LOCKED.

G. Line 1 - EXIT VIEW LOCKOUTS? Line 2 displays NO/YES option.

If NO is selected menu moves back to DRAPER SPEED (I).

If YES is selected from EXIT VIEW LOCKOUTS? menu moves to EXIT WINDRWR SETUP?

E68816-UN-23OCT12

If NO is selected from EXIT WINDRWR SETUP? menu moves to SELECT HEADER TYPE?.

W150

This menu allows the operator to lock out the control functions for the various header functions. The default or selected status for each item will flash.

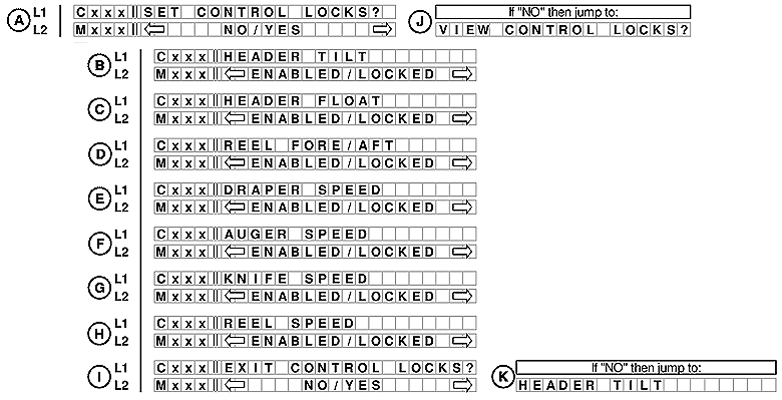

E69171-UN-14NOV12

A. Line 1 - SET CONTROL LOCKS?. Line 2 displays NO/YES option.

If NO is selected menu moves to VIEW CONTROL LOCKS? (H).

B. Line 1 - HEADER TILT. Line 2 displays ENABLED/LOCKED.

C. Line 1 - HEADER FLOAT. Line 2 displays ENABLED/LOCKED.

D. Line 1 - REEL FORE/AFT. Line 2 displays ENABLED/LOCKED.

E. Line 1 - DRAPER SPEED. Line 2 displays ENABLED/LOCKED.

F. Line 1 - AUGER SPEED. Line 2 displays ENABLED/LOCKED.

G. Line 1 - KNIFE SPEED. Line 2 displays ENABLED/LOCKED.

H. Line 1 - REEL SPEED. Line 2 displays ENABLED/LOCKED.

I. Line 1 - EXIT CONTROL LOCKS? Line 2 displays NO/YES option.

If NO is selected from EXIT CONTROL LOCKS? menu moves back to HEADER TILT (K).

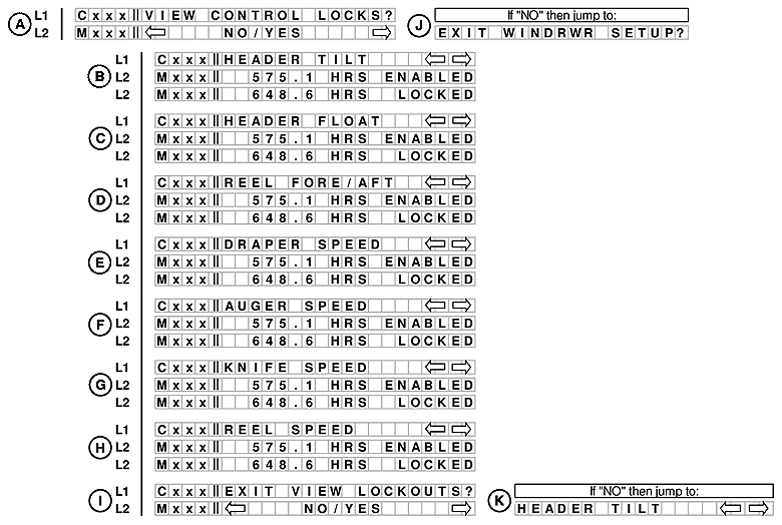

E69172-UN-14NOV12

A. Line 1 - VIEW CONTROL LOCKS?. Line 2 displays NO/YES option.

If NO is selected menu moves to EXIT WINDRWR SETUP? (K).

B. Line 1 - HEADER TILT. Line 2 displays engine hours ENABLED or LOCKED.

C. Line 1 - HEADER FLOAT. Line 2 displays engine hours ENABLED or LOCKED.

D. Line 1 - REEL FORE/AFT. Line 2 displays engine hours ENABLED or LOCKED.

E. Line 1 - DRAPER SPEED. Line 2 displays engine hours ENABLED or LOCKED.

F. Line 1 - AUGER SPEED. Line 2 displays engine hours ENABLED or LOCKED.

G. Line 1 - KNIFE SPEED. Line 2 displays engine hours ENABLED or LOCKED.

H. Line 1 - REEL SPEED. Line 2 displays engine hours ENABLED or LOCKED.

I. Line 1 - EXIT VIEW LOCKOUTS?. Line 2 displays NO/YES option.

If NO is selected from EXIT VIEW LOCKOUTS? menu moves back to HEADER TILT (L).

If YES is selected from EXIT VIEW LOCKOUTS? menu moves to EXIT WINDRWR SETUP?

E68816-UN-23OCT12

If NO is selected from EXIT WINDRWR SETUP? menu moves to SELECT HEADER TYPE?.
