Operating Symbols

Symbol Definitions

The following symbols are used to depict machine and component functions:

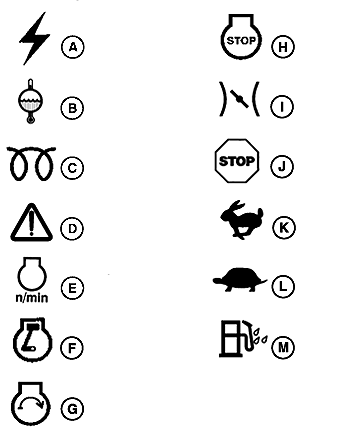

E61962-UN-15AUG12

ENGINE FUNCTION SYMBOLS

A - Electrical Power Accessories

B - Engine Coolant Temperature

C - Engine Glow Plugs

D - Engine Malfunction

E - Engine RPM

F - Engine Run

G - Engine Start

H - Engine Stop

I - Engine Throttle

J - Engine Urgent Stop

K - Fast

L - Slow

M - Water In Fuel

Learn the meaning of these symbols before operating the windrower.

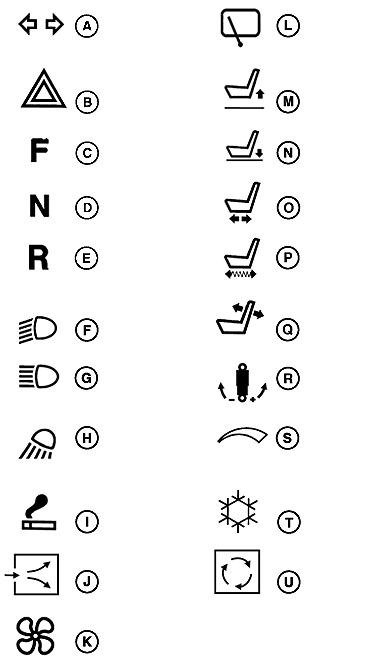

E61963-UN-15AUG12

WINDROWER OPERATING SYMBOLS

A - Turn Signals

B - Hazard Warning Lights

C - Forward

D - Neutral

E - Reverse

F - Headlights Low Beam/Road Lights

G - Headlights High Beam/Road Lights

H - Work Light

I - Lighter

J - Fresh Air

K - Blower

L - Windshield Wiper

M - Seat Height Up

N - Seat Height Down

O - Seat Fore & Aft

P - Seat Fore & Aft Isolator

Q - Seat Back Fore & Aft

R - Seat Ride Damping

S - Cab Temperature Control

T - Air Conditioning

U - Recirculate

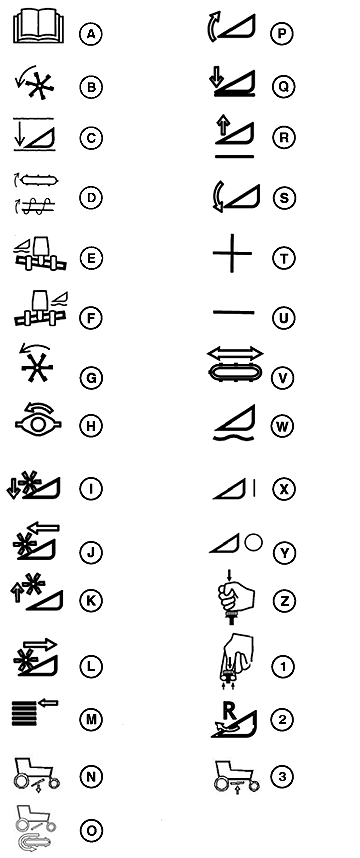

E61964-UN-15AUG12

HEADER FUNCTION SYMBOLS

A - Program

B - Header Index

C - Return To Cut

D - Conveyor/Auger Speed

E - Float Left

F - Float Right

G - Reel Speed

H - Disc Speed

I - Reel Down

J - Reel Forward

K - Reel Up

L - Reel Rearward

M - Display Select

N - DWA Down

O - DWA Draper Speed

P - Header Tilt Up

Q - Header Down

R - Header Up

S - Header Tilt Down

T - Increase

U - Decrease

V - Deck Shift

W - Float

X - Header Engage

Y - Header Disengage

Z - Push Down Header Disengage

1 - Pull Up Header Engage

2 - Header Reverse

3 - DWA Up

CAUTION: It is the operator’s responsibility to read and understand this manual completely before operating the windrower. Contact your dealer if you have any questions about the operation or maintenance of the windrower.
