Safety Signs

E66154
E66154-UN-27JUN12

E66707
E66707-UN-20JUL12

E66826
E66826-UN-19JUL12

(A)

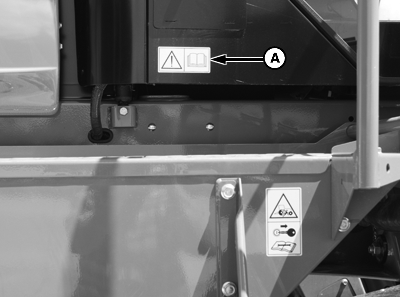

(A) - CAUTION: To avoid injury or death from improper or unsafe machine operation:

  • Read the Operator’s Manual and follow all safety instructions.

    If you do not have a manual, obtain one from your dealer.

  • Do not allow untrained persons to operate the machine.
  • Review safety instructions with all operators annually.
  • Ensure that all safety signs are installed and legible.
  • Make certain everyone is clear of machine before starting engine and during operation.
  • Keep riders off the machine.
  • Keep all shields in place and stay clear of moving parts.
  • Disengage header drive, put transmission in neutral and wait for all movement to stop before leaving Operator’s position.
  • Use slow moving vehicle emblem and flashing warning lights when operating on roadways unless prohibited by law.

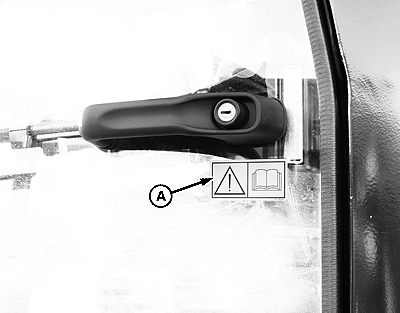

Location: Two signs, one sign located under the left side cab door handle (cab-forward) and one sign located on the lower left side of right cab side glass.

E66076
E66076-UN-20JUN12

E66080
E66080-UN-20JUN12

(A)

(A) - DANGER: Start only from seat in park or neutral. Starting in gear kills.

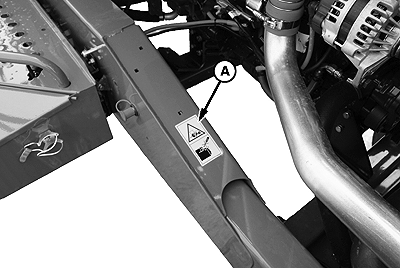

Location: One vertical sign located on windrower frame, left side cab-forward.

E66093
E66093-UN-22JUN12

E66633
E66633-UN-13JUL12

(A)

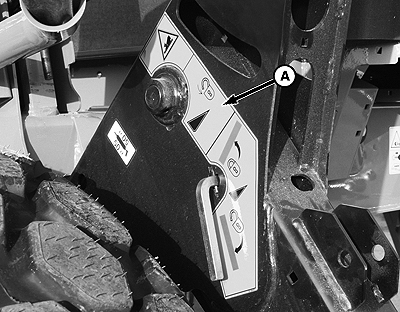

(A) - DANGER: Rest header on ground or engage mechanical locks before going under unit. See Operator’s Manual.

Location: Two signs, one on each lift arm.

E66077
E66077-UN-19JUL12

E66082
E66082-UN-21JUN12

(A)

(A) - WARNING: DO NOT GO NEAR LEAKS

  • High pressure oil easily punctures skin causing serious injury, gangrene or death.
  • If injured, seek emergency medical help. Immediate surgery is required to remove oil.
  • Do not use finger or skin to check for leaks.
  • Lower load or relieve hydraulic pressure before loosening fittings.

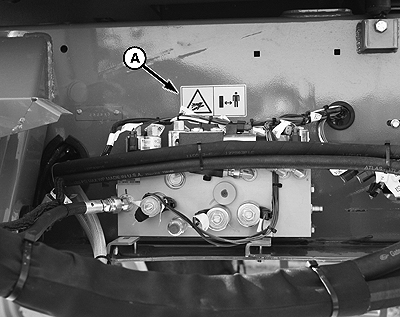

Location: One horizontal sign located behind platform, left side cab-forward.

E66078
E66078-UN-21JUN12

E66636
E66636-UN-13JUL12

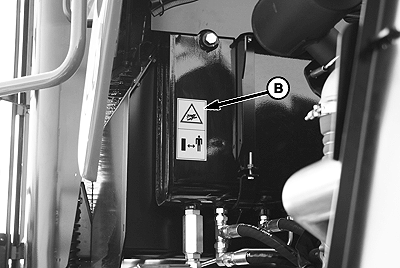

(B)

(B) - WARNING: DO NOT GO NEAR LEAKS

  • High pressure oil easily punctures skin causing serious injury, gangrene or death.
  • If injured, seek emergency medical help. Immediate surgery is required to remove oil.
  • Do not use finger or skin to check for leaks.
  • Lower load or relieve hydraulic pressure before loosening fittings.

Location: Two vertical signs located on lower left and lower right side of hydraulic tank (W150). One vertical sign centered on hydraulic tank (W110).

E66084
E66084-UN-21JUN12

E66630
E66630-UN-13JUL12

(A)

E66637
E66637-UN-13JUL12

(B)

E66638
E66638-UN-13JUL12

(C)

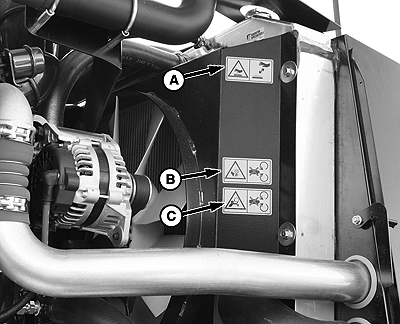

(A) - CAUTION: Hot Surface. Surfaces and engine exhaust may be hot.

Location: One sign on left top side, cab-forward radiator fan shroud.

(B) - WARNING: Keep all shields in place. Keep hands and clothing away from rotating fan.

Location: One sign on middle, left side, cab-forward radiator fan shroud. One sign at same position on right side, cab-forward fan shroud.

(C) - WARNING: Rotating parts. Keep hands and clothing away from rotating parts. Stay clear when engine is running.

Location: One sign on lower, left side, cab-forward radiator fan shroud. One sign at same position on right side, cab-forward fan shroud.

E66085
E66085-UN-21JUN12

E66630
E66630-UN-13JUL12

(A)

E66631
E66631-UN-13JUL12

(B)

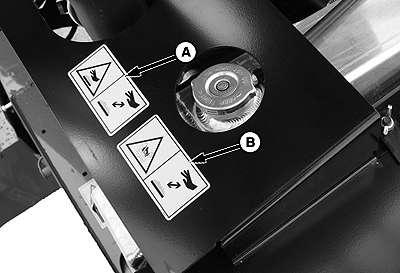

(A) - CAUTION: Hot Surface. Surfaces and engine exhaust may be hot.

Location: One sign on top of radiator cover, near the radiator cap.

(B) - WARNING: Coolant is under pressure and may be hot. Never remove radiator cap when engine is hot.

Location: One sign on top of radiator cover, near the radiator cap.

E66086
E66086-UN-21JUN12

W110, (A)-(B)

E66087
E66087-UN-21JUN12

W150, (A)-(B)

E66634
E66634-UN-13JUL12

(A)

E66635
E66635-UN-13JUL12

(B)

(A) - WARNING: Batteries contain acid and explosive gas. Explosion can result from sparks, flames, or wrong cable connections. To connect jumper cables or charger, see manual(s) for correct procedure. Failure to follow these instructions may cause death or serious injury.

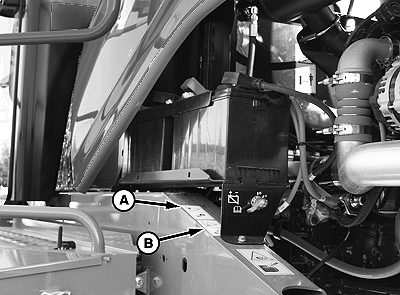

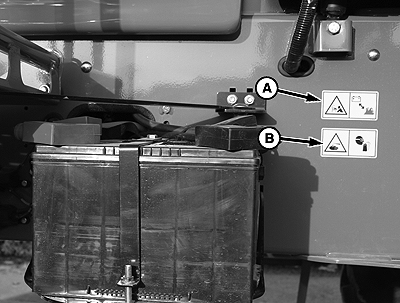

Location: W110 - One sign on the frame under the batteries. W150 - One sign on the frame just behind the battery, left side cab-forward.

(B) - WARNING: PREVENT SERIOUS BODILY INJURY CAUSED BY:

  • EXPLOSIVE BATTERY GASES. Keep sparks and flames away from the battery. Refer to Operator’s Manual for battery boosting and charging procedures.
  • CORROSIVE AND POISONOUS BATTERY ACID. Acid can severely burn your body and clothing.

Location: W110 - One sign on the frame under the batteries. W150 - One sign on the frame just behind the battery, left side cab-forward.

E66081
E66081-UN-22JUN12

(A)

E66639
E66639-UN-19JUL12

(A),(B),(C)

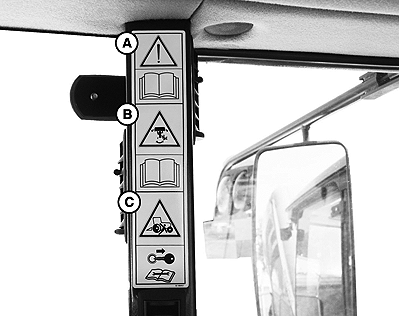

(A) - CAUTION: To avoid injury or death from improper or unsafe machine operation:

  • Read the Operator’s Manual and follow all safety instructions.

    If you do not have a manual, obtain one from your dealer.

  • Do not allow untrained persons to operate the machine.
  • Review safety instructions with all operators annually.
  • Ensure that all safety signs are installed and legible.
  • Make certain everyone is clear of machine before starting engine and during operation.
  • Keep riders off the machine.
  • Keep all shields in place and stay clear of moving parts.
  • Disengage header drive, put transmission in neutral and wait for all movement to stop before leaving Operator’s position.
  • Use slow moving vehicle emblem and flashing warning lights when operating on roadways unless prohibited by law.

Location: One sign on left side interior cab post, cab-forward.

E66081
E66081-UN-22JUN12

(B)

E66639
E66639-UN-19JUL12

(A),(B),(C)

(B) - WARNING: Machine will move sideways if steering wheel is turned while engine is running, even though ground speed control lever is in neutral. Be sure everyone is clear of machine before turning wheel. Steering is opposite to normal when backing up (turn bottom of steering wheel in direction you want to go).

Location: One sign on left side interior cab post, cab-forward.

E66081
E66081-UN-22JUN12

E66639
E66639-UN-19JUL12

(A),(B),(C)

(C) - DANGER: To prevent machine runaway:

  • STOP ENGINE before adjusting steering linkage or neutral interlock.
  • Disengage and shut off all engine and/or motor power before servicing or unclogging machine.
  • Do not rewire or mis-adjust neutral interlock so engine can be started with controls out of neutral.
  • Do not try to start engine with someone under or near the machine.
  • Refer to Operator’s Manual for starting and adjustment procedures.

Location: One sign on left side interior cab post, cab-forward.

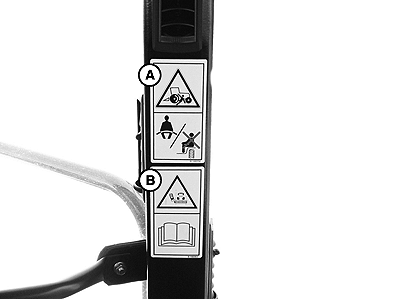

E66089
E66089-UN-27JUN12

E66640
E66640-UN-19JUL12

(A)

E66641
E66641-UN-19JUL12

(B)

(A) - WARNING: The training seat is provided for an experienced operator of the machine when a new operator is being trained.

The training seat is NOT intended as a PASSENGER SEAT or FOR USE BY CHILDREN.

USE THE SEAT BELT whenever operating the machine or riding as a trainer.

KEEP ALL OTHER RIDERS OFF THE MACHINE.

Location: One sigh on lower left interior cab post, cab-forward.

(B) - WARNING: Collision between windrower and other vehicles may result in injury or death.

When driving windrower on public roadways:

  1. Obey all highway traffic regulations in your area. Use pilot vehicles front and rear of windrower if required by law.

  2. Use slow moving vehicle emblem and flashing warning lights unless prohibited by law.

  3. If width of attached header impedes other vehicle traffic, remove header and install an approved weight box. Refer to Operator Manual for safe procedure to tow header.

Location: One sigh on lower left interior cab post, cab-forward.

E66090
E66090-UN-22JUN12

E66091
E66091-UN-22JUN12

E66122
E66122-UN-22JUN12

(A)

(A) - DANGER: To prevent machine runaway:

  • STOP ENGINE before adjusting steering linkage or neutral interlock.
  • Disengage and shut off all engine and/or motor power before servicing or unclogging machine.
  • Do not rewire or mis-adjust neutral interlock so engine can be started with controls out of neutral.
  • Do not try to start engine with someone under or near the machine.
  • Refer to Operator’s Manual for starting and adjustment procedures.

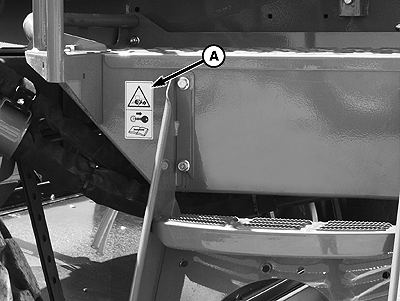

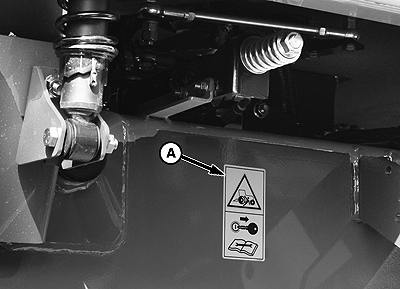

Location: Three signs, one sign on frame under front cab, cab-forward. One sign on platform frame just left of steps, cab-forward.

One sign on platform frame just right of steps (W150). One sign on frame, right side (W110).

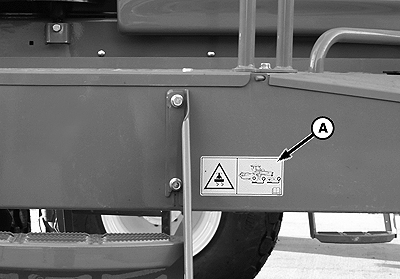

E66092
E66092-UN-22JUN12

E66642
E66642-UN-13JUL12

(A) W110

E66629
E66629-UN-13JUL12

(A) W150

(A) - CAUTION: To prevent machine damage and / or loss of control, it is essential that the machine be equipped such that weights are within these limits:

Location: One sign on frame at right side of platform steps, cab-forward.

W110 WINDROWER

KG

LB

MAX GVW

(includes mounted implements)

8 050

17 750

MAX CGVW

(includes towed and mounted implements)

9 160

20 200

WEIGHT ON BOTH DRIVE WHEELS

MAXIMUM

7 390

16 300

MINIMUM

4 150

9 150

MAX WEIGHT ON BOTH CASTER TIRES

1 610

3 550


W150 WINDROWER

KG

LB

MAX GVW

(includes mounted implements)

9 750

21 500

MAX CGVW

(includes towed and mounted implements)

10 480

23 100

WEIGHT ON BOTH DRIVE WHEELS

MAXIMUM

8 500

18 750

MINIMUM

4 570

10 070

MAX WEIGHT ON BOTH CASTER TIRES

2 750

6 050

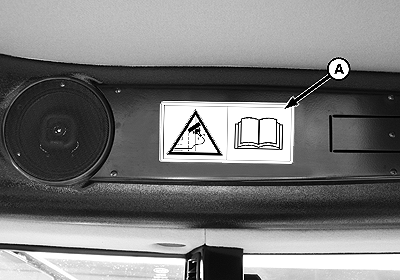

E66706
E66706-UN-20JUL12

W110

E66094
E66094-UN-27JUN12

W150

E66827
E66827-UN-19JUL12

(A)

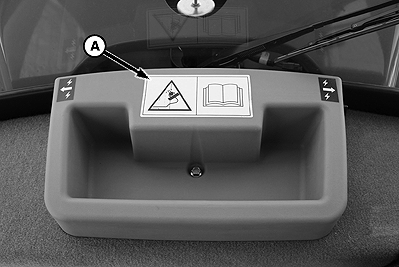

(A) - WARNING: To avoid death or serious injury from loss of control:

  • Do not make abrupt changes in steering direction.
  • Anticipate turns by slowing down well in advance.
  • Do not rapidly accelerate or decelerate while turning.
  • Limit speed to maximum 32 km/h (20 mph) when towing a header. To ensure steering control refer to operator’s manual for adding weight to drive wheels.
  • When traveling on steep slopes:
  1. Reduce speed and lower header.
  2. Move ground speed lever to slow end of range.
  3. Shift high-low speed control to low range.
  • With header removed, steering control is reduced if weight is not added to drive wheels. If you must drive the tractor without header or weight system:
  1. Operate in low speed range.
  2. Avoid slopes.
  3. Do not tow

Location: W110 - One sign on right side cab overhead (interior). W150 - One sign on storage compartment behind operator seat, cab-forward.

RC48509,000030B-19-20120814
