Components

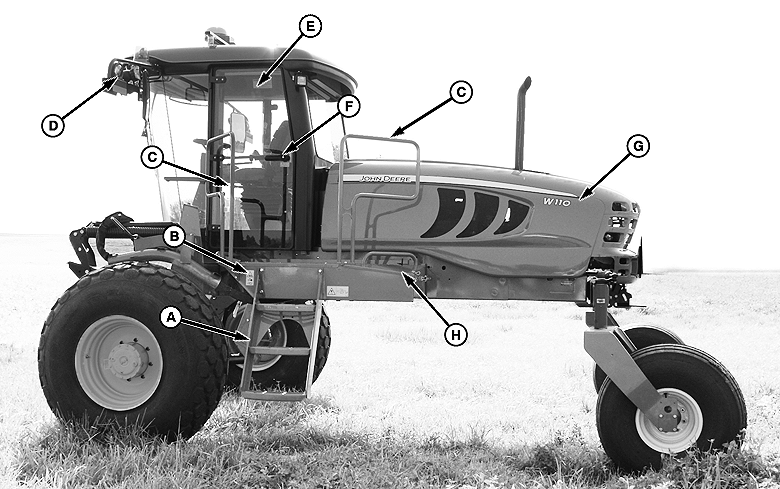

E66151-UN-26JUN12

W110 Left Side

A - STEPS

B - OPERATOR and MAINTENANCE PLATFORM

C - HAND HOLDS

D - LEFT SIDE LIGHT BAR

E - OPERATOR’S COMPARTMENT

F - CAB DOOR LATCH HANDLE

G - ENGINE HOOD

H - TOOL STORAGE

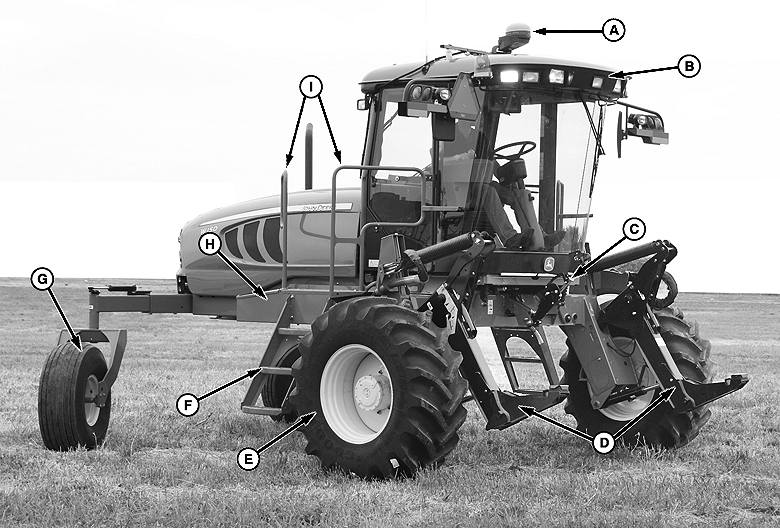

E66152-UN-26JUN12

W150 Right Side Cab-Forward

A - StarFire™ 3000

B - FIELD / ROAD LIGHTS

C - HYDRAULIC CENTER-LINK

D - LIFT ARMS

E - RIGHT SIDE DRIVE WHEEL CAB-FORWARD

F - RIGHT SIDE MAINTENANCE PLATFORM STEPS

G - CASTER WHEEL

H - RIGHT SIDE CAB-FORWARD MAINTENANCE PLATFORM

I - RIGHT SIDE CAB-FORWARD MAINTENANCE PLATFORM HAND HOLDS
