Before Operating

E66421
E66421-UN-10JUL12

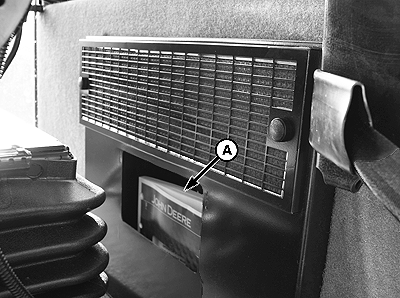

W110 Operator Manual Storage

E66423
E66423-UN-10JUL12

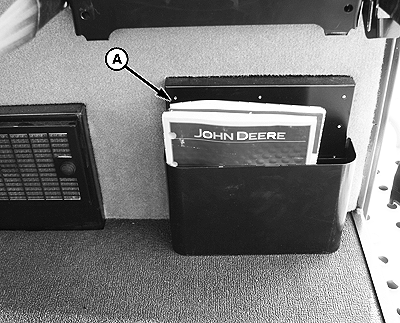

W150 Operator Manual Storage

E66535
E66535-UN-19JUL12

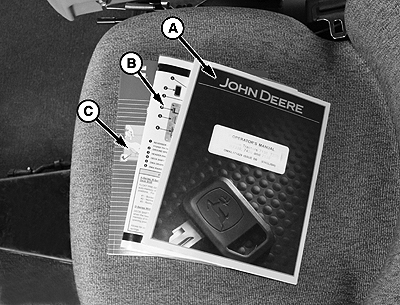

A - Windrower Operator’s Manual Storage

B - Windrower Quick Reference Guide

C - Engine Manual

Become familiar with operator's manual, machine decals, and Safety section of this manual. The Operator’s Manuals (A) are stored in dedicated storage compartments behind the operator’s seat when in the cab forward position.

Also supplied with the Operator’s Manual package is a Quick Reference Guide, Operator Manual Supplement (B) and Engine Manual (C).

Remove foreign objects from machine.

Keep dirt, debris and build up off of the steps and platforms and hand holds.

Become familiar with all controls effecting machine functions.

Make sure everyone is clear of the machine. Never allow riders on machine or near machine while it is running.

Be sure shields and guards are in place and in good condition before starting.

RC48509,00003C4-19-20120813
