Operator's Seat Adjustments

The operator's seats have several adjustments. Always adjust the operator seat and secure the seat belt before operating the windrower.

• Arm Rest

  Raise the arm rest up for easy access in and out of the seat. Lower the arm rest before operating.

• Fore/Aft Adjustment

  Pull up to release the seat latch and adjust the seat foreward or rearward. Release and the seat will latch into position.

• Seat Back Angle

  Pull lever up to release the seat back for adjustment. Release the lever to lock the seat back into position.

• Arm Rest Angle

  Adjust the arm rest angle up by rotating the control clockwise. To decrease the angle rotate counterclockwise.

•

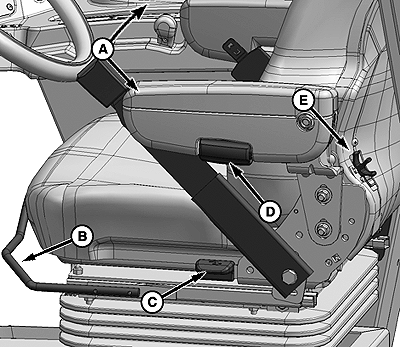

  E61026-UN-20MAR12

  W110 Operator Seat

  A - Arm Rest Fold Up/Down

  B - Seat Fore/Aft

  C - Seat Back Angle

  D - Arm Rest Angle

  E - Lumbar Support

  Lumbar Support

  To adjust the firmness of seat back rotate the knob upward. To decrease rotate downward.

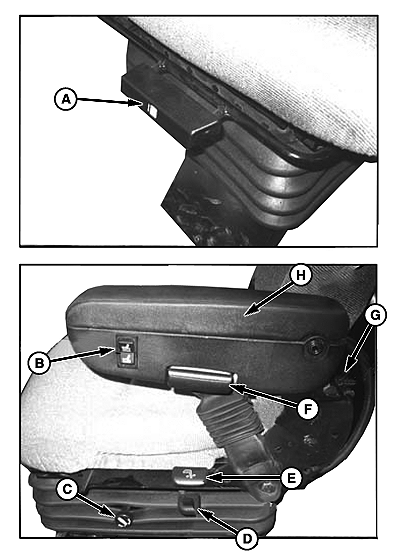

E61027-UN-20MAR12

W150 Operator Seat

A - Seat Fore/Aft

B - Operator Weight and Seat Height

C - Vertical Dampener

D - Seat Fore/Aft Isolator Lock

E - Seat Back Angle

F - Arm Rest Angle

G - Lumbar Support

H - Arm Rest Raise/Lower

• Operator Weight and Seat Height

  To increase the suspension firmness and seat height press the upper switch.

  Press the lower switch to decrease firmness and seat height.

• Vertical Dampener

  To increase suspension dampening turn knob clockwise.

  To decrease suspension dampening turn knob counterclockwise.

• Seat Back Angle

  Pull lever up and adjust the seat back as desired. Release the lever to lock the position.
