W150 Steering Column Adjustment

The steering column can be adjusted to suit the operator and for easier entry and exit from the cab.

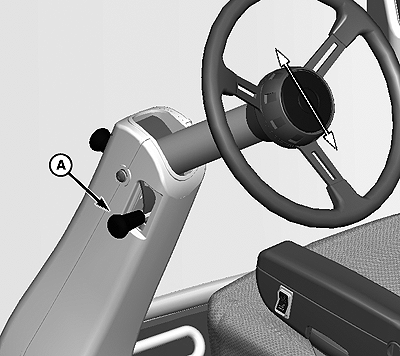

Hold onto steering wheel, lift handle (A) and move steering wheel up or down to desired position.

Release handle to lock steering wheel position.

E61013-UN-16MAR12

CAUTION: To prevent loss of control, adjust steering wheel only when windrower is stopped.
