Turn Signals

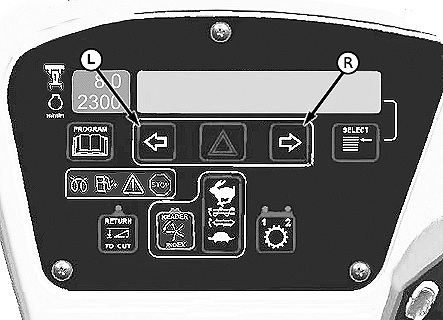

E61025-UN-19MAR12

L - Left Turn Switch and Indicator

R - Right Turn Switch and Indicator

Turn signals are operable whenever ignition key is in the RUN position.

When operating the windrower on the road or highway, use the turn signals when turning the windrower.

Push the left turn signal (L) to activate the left turn lights.

Push the right turn signal (R) to activate the right turn lights.

IMPORTANT: Turn signals are not self cancelling. The operator must push the turn signal switch again to cancel.

Amber lights on platform and amber lights on machine will flash in direction of indicated turn.

Corresponding lights on the opposite side of the machine will remain on (not flashing).

NOTE: Left and right turn signal indicator lights blink individually in direction of indicated turn.
