Engine Warning Lights

E61024-UN-19MAR12

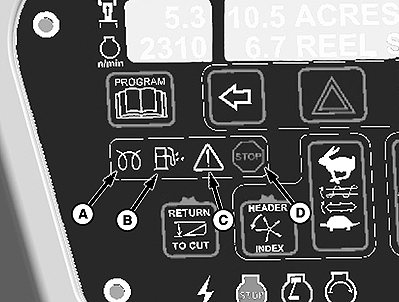

W110 Engine Warning Lights

E61023-UN-19MAR12

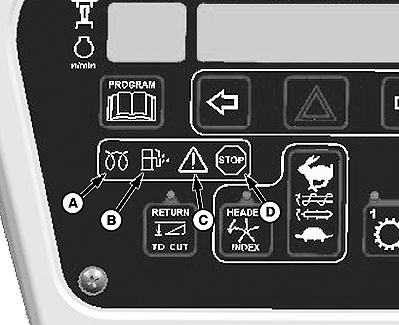

W150 Engine Warning Lights

E65088-UN-13JUN12

A-D - Engine Warning Lamps

E - Return To Cut, Header Index Lamp

This portion of the CDM displays engine warning lights.

Listed below are the keyed designation of the warning lamp, color displayed and if an audible alarm is present;

NOTE: Warning description will also be displayed on the CDM screen.

KEY	FUNCTION	COLOR	ALARM
(A)	Engine Preheat	Yellow	No
(B)	Water in Fuel	Yellow	Yes
(C)	Caution	Yellow	Yes
(D)	Stop Engine Immediately	Red	Yes

When the key switch is turned to ON the four engine warning lamps, A - D, Return To Cut and Header Index lamps E will illuminate briefly.
