Cab Display Module

The Cab Display Module (CDM) allows the operator to control and view engine, windrower and header functions. The W110 and W150 windrowers share some Cab Display Module switches and functions.

Detailed operation of some functions and switches are explained in the Operating Windrower and Header Operation sections of this manual.

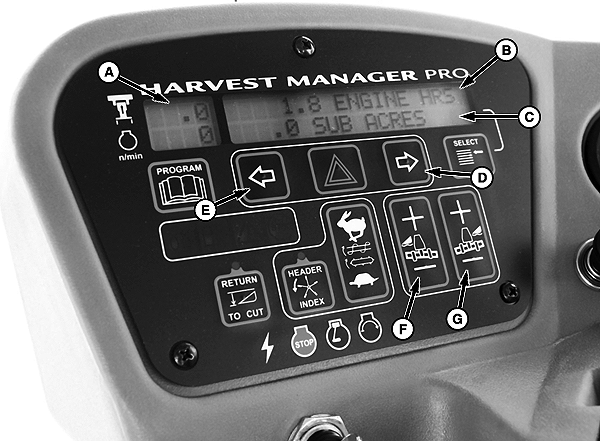

E60924-UN-13JUN12

W150 CDM

A - Display of Engine / Windrower / Header Functions

B - Upper Line Displays

C - Lower Line Displays

D - Right Turn Signal Switch / Selects Menu Direction

E - Left Turn Signal Switch / Selects Menu Direction

F - Left Float Selector Switch

G - Right Float Selector Switch

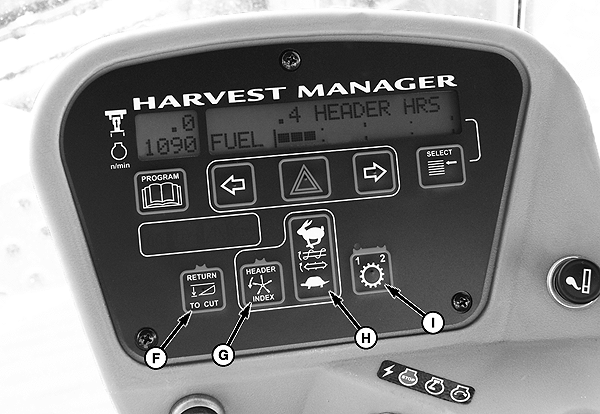

E61030-UN-18JUN12

W110 CDM

F - Return To Cut Height Switch

G - Header Index Switch

H - Reel / Auger / Draper Speed Switch

I - Ground Speed Range Switch

Other switches and functions performed by the CDM are discussed in this Section.
