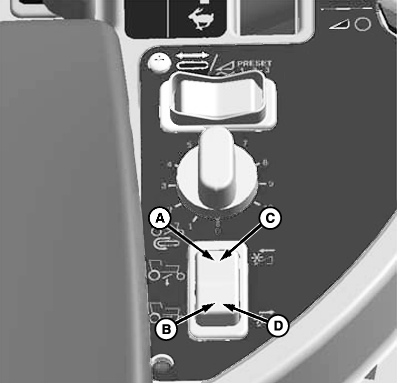

DWA/Swath Roller Switch

E61010-UN-28JUN12

A - DWA Down

B - DWA Up

C - Swath Roller Down

D - Swath Roller Up

Double Windrow Attachment

DWA deck is raised or lowered if switch is installed and programmed.

It may be used in lieu of the DWA switches on the GSL.

Swath Roller

Roller is raised or lowered when switch is pressed.
