Ground Drive and Engine Speed Controls

Throttle - Controls engine RPM.

FULL - Push lever forward.

IDLE - Pull lever back.

Ground Speed Lever (GSL) - The GSL lever is used for machine direction and switches on the handle control various header functions.

F - Forward - Pull the lever out of N-Detent and push forward for forward operation.

N - Neutral

N-DETENT - Engages neutral interlock and applies park brake when steering locked in center.

R - Reverse - Pull the GSL out of N-Detent and pull back for rearward operation. Always make sure the area to the rear is clear of all personnel and objects before engaging reverse direction.

Ground Speed Range Switch - (W150 only) - This two position rocker switch shifts transmission speed range.

H - 0 - 37 km/h (0 - 23 mph) Engine - Forward Only / 0 - 25.7 km/h (0 - 16 mph) Cab-Forward Only.

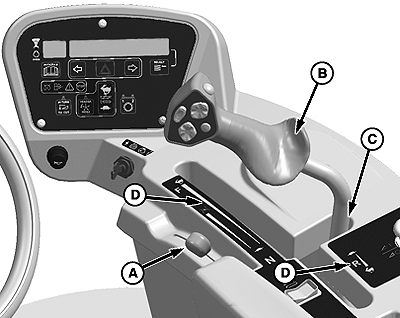

E60999-UN-19MAR12

W110 Throttle & Ground Speed Controls

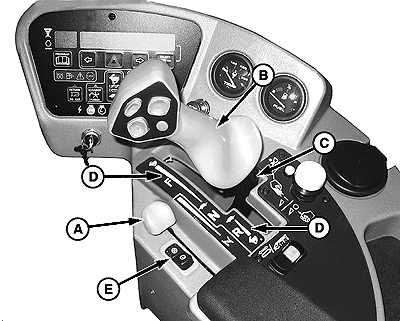

E61020-UN-19MAR12

W150 Throttle & Ground Speed Controls

A - Throttle Lever

B - GSL (Ground Speed Lever)

C - GSL in N-Detent Position

D - Ground Speed Instructional Decals

E - Ground Speed Range Switch (W150 only)
