Ignition Switch / Horn

E61019
E61019-UN-19MAR12

W150 Cab Display Module

E61016
E61016-UN-16MAR12

W110 Cab Display Module

E61018
E61018-UN-19MAR12

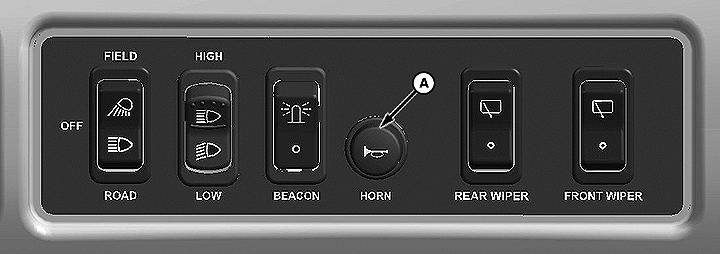

W150 Horn In Overhead Panel

A - Horn

B - Ignition Switch

C - Ignition Switch Instructional Decal

The ignition switch (B) is located on the operator console just below the Cab Display Module (CDM).

Instructional decal (C) for the ignition switch is located just above the switch.

CAUTION: Sound horn before starting engine to clear people away from the windrower.

Horn

Press horn button switch (A) to sound horn.

Horn is powered and functional as long as there is battery power. The ignition switch does not need to be powered up to sound horn.

NOTE: Master disconnect must be in ON or operation position for horn to be functional.

RC48509,0000438-19-20120814
