Operator’s Station

E61014-UN-15AUG12

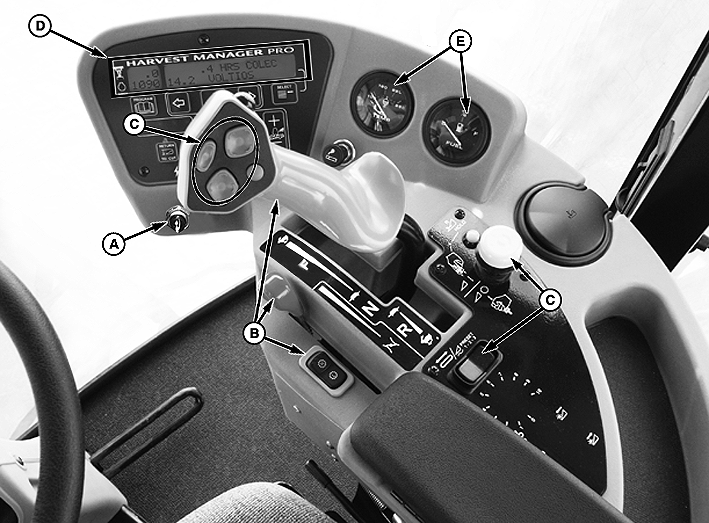

W150 OPERATOR CONSOLE

A - Ignition Switch

B - Ground Speed and Engine Controls

C - Header Controls

D - Engine/Windrower Functions Display

E - Engine Temperature and Fuel Gauge

The operator’s station is designed for operating the windrower in a cab-forward (field mode) position. The W150 is designed to also allow the operator to operate in engine forward (transport mode) by turning the station 180 degrees.

The operators station includes the console, seat and steering column.
