Operator’s Station Entrance

E66158
E66158-UN-28JUN12

E66156
E66156-UN-28JUN12

E66157
E66157-UN-28JUN12

A - Hand Holds

B - Steps

C - Cab Door Latch Handle

D - Door Release Lever

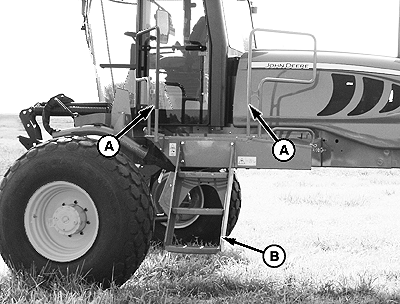

To enter the windrower cab, use the hand holds (A) and steps (B) to reach the platform.

Use the 3 point method to enter and exit the cab.

When exiting the platform and steps turn around to the enter position and use the 3 point contact method. Do not jump off the steps.

CAUTION: Do not jump off the steps when exiting the windrower.

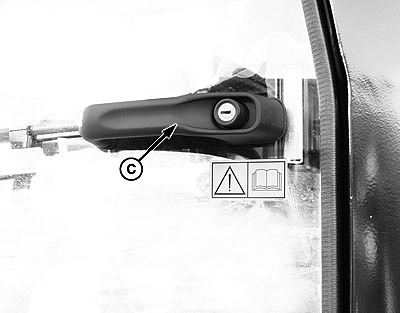

Grasp the door handle (C) and push on the lock mechanism to enter the cab. The door may be locked into a full open position.

The cab may be locked with the ignition key.

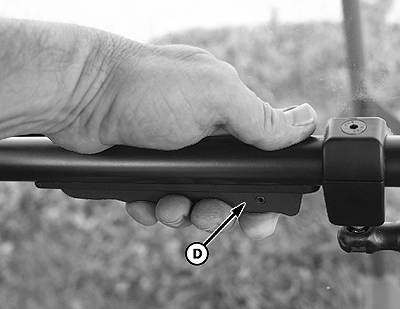

To exit the cab or unlock the door from the open position, pull up on the interior door release handle (D).
