Hazard Lights

E66716-UN-31JUL12

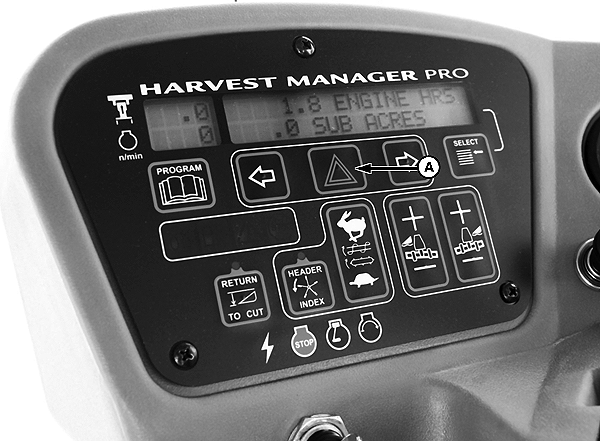

HAZARD LIGHT SWITCH

E66715-UN-31JUL12

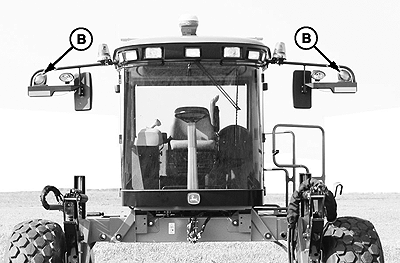

W110 FRONT HAZARD LIGHT

E66714-UN-31JUL12

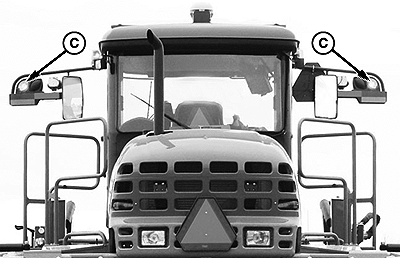

W150 REAR ENGINE-FORWARD HAZARD LIGHT

A - Hazard Light Switch

B - W110 Front Hazard Light

C - W150 Rear Hazard Light

The flashing hazard lights give warning to the operators of other vehicles.

To activate the hazard lights, push the switch (A). Push the switch again to turn the lights off.

When the windrower is disabled on the roadside, use the HAZARD light switch to enable hazard lights.

NOTE: Hazard Lights flash on both the front and rear of each machine.

NOTE: Pressing the hazard switch will also cancel a turn signal.
