Cab Interior Lights

Two lights are installed in the cab headliner.

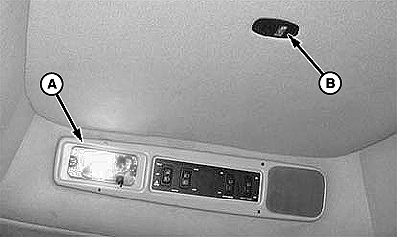

Interior light (A) is located in the headliner switch panel and is activated and deactivated by a button switch. Push-ON and Push-OFF.

E61981-UN-11APR12

A - Cab Light

B - Low Intensity LED Light

A low intensity LED light (B) is located directly overhead to provide additional light. This light functions only when the road/field light switch is ON. This light is activated by an ON-OFF switch located on the light.
