Headlights, Field Lights and Flood Lights

The cab headliner contains controls for operating lights, cab lights, windshield wipers and radio, if equipped.

W110 and W150 lights operate the same.

NOTE: Lighting on the W150 is dependent upon the position of the Operator’s station. Cab-forward or engine-forward. The position of the operator’s station automatically determines the lighting.

Field Lights

Push the upper portion of the switch (A) to power the field lights.

E61114-UN-22MAR12

E66711-UN-10AUG12

FRONT

E66710-UN-30JUL12

REAR

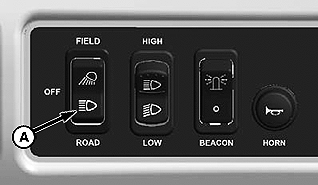

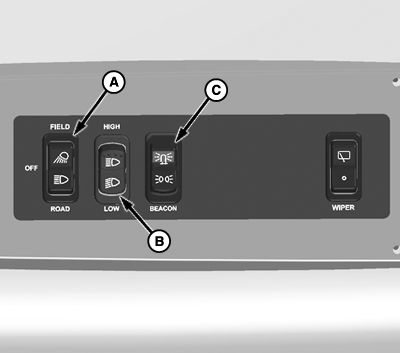

A - Field and Road Light Switch

B - High / Low Beam Switch

C - Rotating Beacon Switch (if equipped)

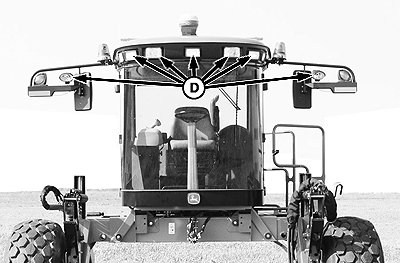

D - High/Low Field Lights

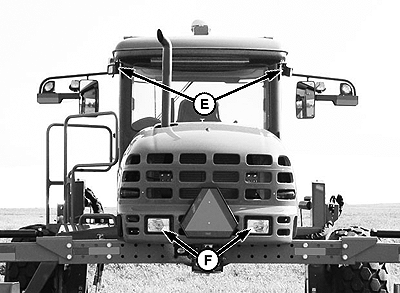

E - Flood Lights

F - High/Low Swath Lights

E66740-UN-10AUG12

E66712-UN-10AUG12

FRONT

E66713-UN-31JUL12

REAR

A - Road Light Switch

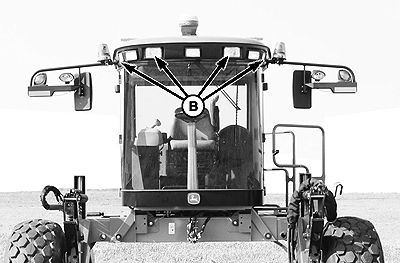

B - Road Lights

C - Turn Signals/Hazards - Amber

D - Tail Lights - Red

Push the lower portion of the switch (A) to power the road lights.

The center portion of the switch is off.
