After 10 Hours of Operation


Walking Beam Adjustment Bolts

ItemMeasurementSpecification
Walking Beam BoltsTorque447 N·m ( 330 lb.-ft.)

E63276
E63276-UN-20APR12

Photo Coming

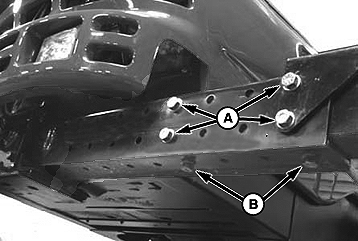

A - Upper Walking Beam Bolts (4 each side)

B - Lower Walking Beam Bolts (2 each side)

Check the torque of the walking beam adjustment bolts every 10 hours of operation.


Drive Wheel Nuts

E63271
E63271-UN-19APR12

Check the torque of the drive wheel nuts every 10 hours of operation.

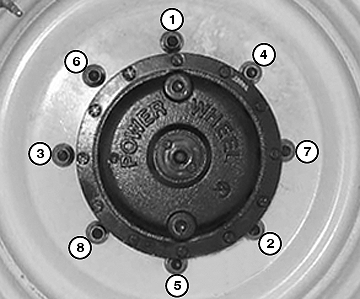

Torque the nuts in a cross pattern by following a sequence as shown in the photograph.

ItemMeasurementSpecification
Drive Wheel NutsTorque300 N·m ( 220 lb.-ft.)
