Battery

Two 12 volt batteries are standard on the W110 and W150 windrowers. Located under the engine hood on the left side cab forward position on the W110. Just under the cab landing platform right side cab-forward on the W150.

CAUTION: If a booster battery is required, see Electrical Section.

When temperatures drop below freezing, keep battery fully charged.

E65106
E65106-UN-19JUN12

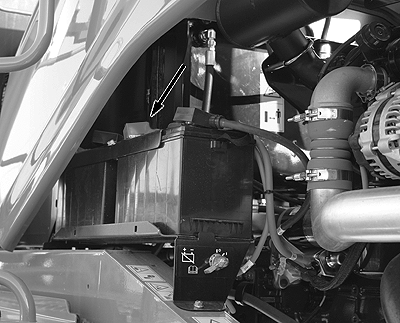

W110 Batteries

Always keep batteries and terminals clear of debris and dirt when operating windrower.
