Stopping Engine

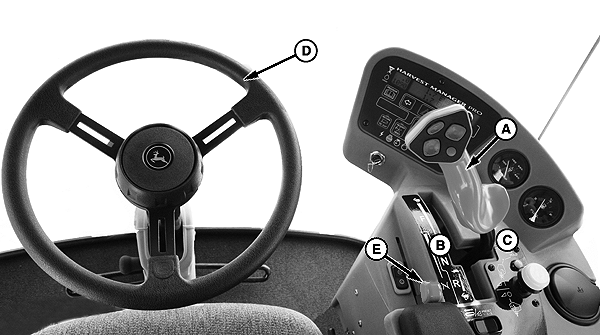

E65107-UN-19JUN12

A - GSL

B - Neutral Position (N)

C - N-Detent Position (Neutral Park)

D - Steering Wheel

E - Engine Speed Lever

1. Slowly move the GSL (A) to neutral (B) and then to N-DETENT (C).

2. NOTE: GSL (A) must be at rest, to the right, in neutral park position. This will engage neutral start switch.

   Steering is locked and park brake is spring applied while neutral start switch is engaged.

   Move multifunction control handle (A) to neutral park.

3. Turn steering wheel (D) until it locks.

4. Place engine speed switch (E) to low speed. Allow engine to operate at low rpm for 1—3 minutes.

5. Lower platform to the ground.

6. IMPORTANT: After engine has stopped, remove the key to prevent unauthorized operation or tampering.

   Key can not be removed unless switch is in OFF position, preventing accidental battery discharge.

   Turn ignition switch OFF and remove key.
