Checking Warning Lights

E65088
E65088-UN-13JUN12

With the master disconnect switch turned to ON, check the windrower warning lamps.

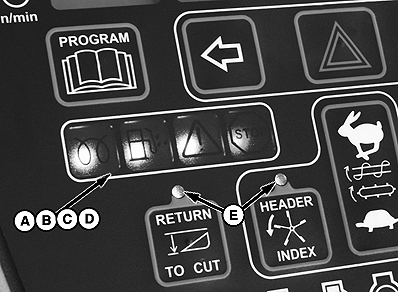

Turn ignition switch to accessories or run position. The warning lamps (A-D) and Return to Cut and Header Index (E) will briefly glow.

Familiarize yourself with the location and color of the warning lamps. Some lamps will trigger a warning sound, also.

RC48509,000053F-19-20120814
