Attaching Platform

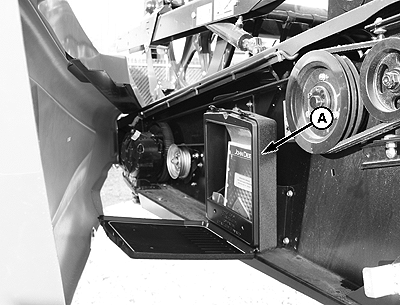

Before attaching a platform to the windrower it will be necessary to read this manual and the appropriate platform manual (A).

It may be necessary to use ballast weight, depending on the size and weight of the platform..

CAUTION:

E66418-UN-10JUL12

To prevent bodily injury, it is necessary to read this manual and the Platform Operator's Manual to familiarize yourself with the operation of the W110 and W150 Self-Propelled Windrower and Platform.

IMPORTANT: To prevent machine damage and insure a properly operating platform, it is necessary to read this manual and the platform manual to familiarize yourself with the operation of the W110 and W150 Self-Propelled Windrower and Platform.

E65075-UN-31AUG12

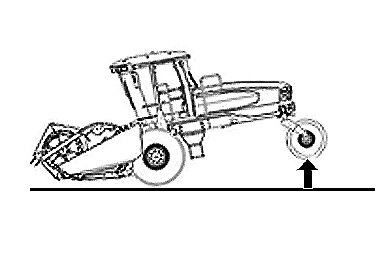

Operating, steering and braking performance of windrower can be considerably affected by the size of the platform used which may alter the center of gravity of the windrower.

To maintain the proper ground contact, add ballast to the rear of the windrower as recommended for the platform in use.

W150 machines operating in engine-forward transport mode in high range may also require ballast modification. A weight box is available for this operation. Contact your dealer.
