Reversing Platform

If the optional hydraulic reversing kit has been installed the header drive may be reversed, as necessary, to clear the header.

1.

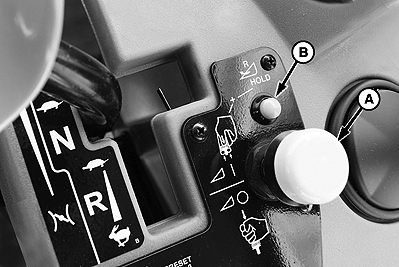

   E61022-UN-13JUN12

   Push down and hold HEADER DRIVE REVERSE button and pull up the HEADER DRIVE switch.

---




2. CDM will display HEADER REVERSE.

3. Release REVERSE button to stop header.

4. Push down the HEADER DRIVE SWITCH to OFF so that it can be re-started.

IMPORTANT: To prevent improper operation and damage to the reel on D series draper headers when the reverser kit is installed:

If switching between A160/180 auger header and D series draper header the hose plumbing to the reverser valve must be changed to suit the header type.

This function will:

• Reverse knife and conditioner on D series draper headers.
• Reverses reel, auger, knife and conditioner on A series auger headers.
