Spin Turn

Hydrostatic steering gives the operator pivot turn capability.

NOTE: The W110 and W150 windrowers spin turn the same way. W110 console shown in this sequence.

CAUTION: Confirm that the area is clear before making turns. Although the windrower pivots on the spot, the ends of header travel faster, and in a large arc.

  1. E61143
    E61143-UN-28MAR12

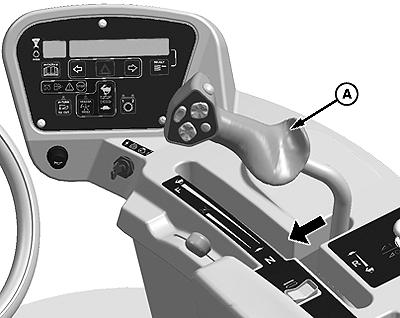

    Move the GSL (A) out of N-DETENT towards the seat and HOLD.


  2. Slowly turn the steering wheel in the desired direction of turn. The windrower will pivot between the drive wheels.

  3. To stop the turn, slowly turn the steering wheel back to its centered position.

  4. To increase the turn radius, slowly move the GSL away from NEUTRAL. Remember that this will increase ground speed as well.

  5. To STOP the turn, return the steering wheel to center.
