Reverse In Engine Forward Operation

CAUTION: Back up slowly. Steering is opposite to normal when reversing. Hold steering wheel at the bottom, and turn wheel in direction you want the rear of the machine to travel.

The following instructions are for cab forward reverse operation with the seat facing the header direction of travel.

Reversing in low speed-range and at reduced engine speed is recommended since steering will be less sensitive than higher speed settings.

NOTE: The W150 operator may rotate the operators station to face the engine. Instructions for this type of reverse operation follow in this section.

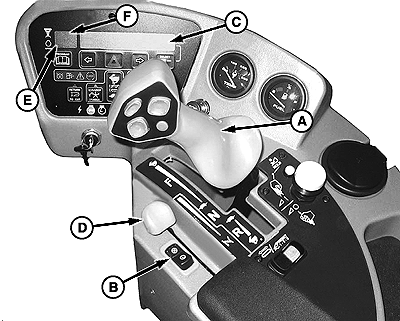

E61138-UN-26MAR12

W150 Console

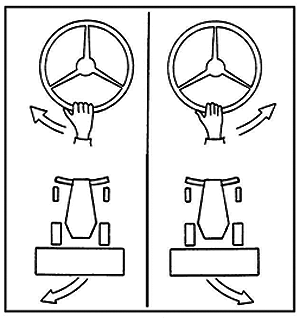

E61142-UN-27JUL12

ENGINE-FORWARD REVERSE STEER

A - GSL (Ground Speed Lever)

B - Ground Speed Range Switch

C - CDM Display

D - Throttle Lever

E - CDM Display

F - CDM Display

1. Adjust the seat so that it is comfortable and all controls may be easily reached and moved through entire range of movement. (See Controls and Instruments Section)

2. Steering column height adjusted and in a comfortable position. (See Controls and Instruments Section)

3. Place GSL (A) in N-DETENT.

4. Fasten seat belt.

5. Sound the horn and turn the ignition key to run and start the engine.

   CAUTION: Confirm that the operating area is clear of bystanders, animals or obstructions.

6. Set ground speed range switch (B) to position 1 for field.

   CDM will display an engine status at (C).

7. Slowly push throttle (D) to mid-range. CDM will display engine RPM at (E).

   CAUTION: Operate the steering wheel and ground speed lever (GSL) slowly for familiarization. Avoid the common tendency of new operators to over-steer.

   CAUTION: BEFORE engaging the GSL (Ground Speed Lever) into reverse, confirm that the area is clear of bystanders, animals and obstructions.

8. Move the GSL (A) out of N-DETENT, and slowly move it rearward to desired speed which will be displayed at (F).
