Reverse In Cab Forward Operation

CAUTION: Back up slowly. Steering is opposite to normal when reversing. Hold steering wheel at the bottom, and turn wheel in direction you want the rear of the machine to travel.

The following instructions are for cab forward reverse operation with the seat facing the header direction of travel.

Reversing in low speed-range and at reduced engine speed is recommended since steering will be less sensitive than higher speed settings.

IMPORTANT: The W150 windrower operator’s station may be rotated to face the engine. Although the operator’s station is turned, the steering procedure is the same.

E61137-UN-26MAR12

W110 Console

E61138-UN-26MAR12

W150 Console

E61141-UN-27JUL12

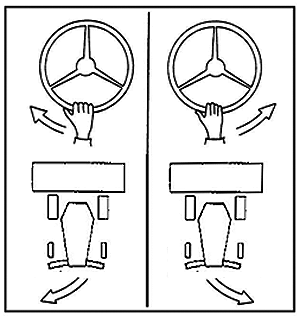

CAB FORWARD REVERSE STEER

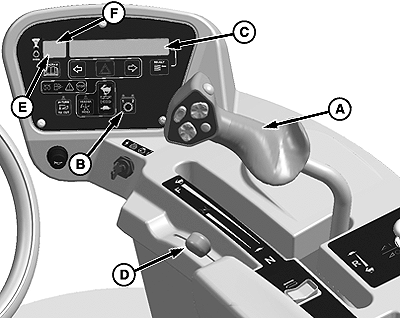

A - GSL (Ground Speed Lever)

B - Ground Speed Range Switch

C - CDM Display

D - Throttle Lever

E - CDM Display

F - CDM Display

1. Set ground speed range switch (B) to position 1 on the W110 or L on the W150 for field speed.

   CDM will display an engine status at (C).

2. Slowly push throttle (D) to mid-range. CDM will display engine RPM at (E).

   CAUTION: Operate the steering wheel and ground speed lever (GSL) slowly for familiarization. Avoid the common tendency of new operators to over-steer.

   CAUTION: BEFORE engaging the GSL (Ground Speed Lever) into reverse, confirm that the area is clear of bystanders, animals and obstructions.

3. Move the GSL (A) out of N-DETENT, and slowly move it rearward to desired speed which will be displayed at (F).
