Light Adjustment and Maintenance

Headlights, field lights and flood lights are best adjusted with the windrower in the field and to the operator’s preference.

To adjust the headlights and field lights adjust the screws (A) in or out to move the light, up, down, left or right.

To adjust the rear flood lights, loosen both bolts (A) and after placing the light in the desired position, tighten the bolts.

E63847-UN-01MAY12

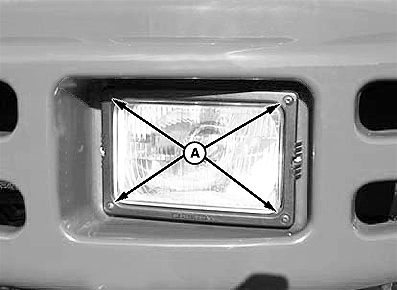

150 Headlight Engine-Forward

E63848-UN-01MAY12

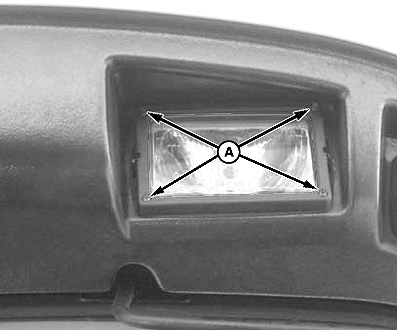

110 Headlight

E63849-UN-01MAY12

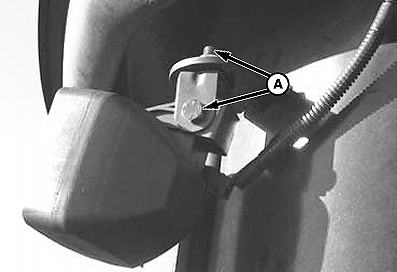

Rear Flood Light

A - Adjustment Screws/Bolts

NOTE: Forward floodlights are not adjustable.

E63855-UN-01MAY12

E63850-UN-01MAY12

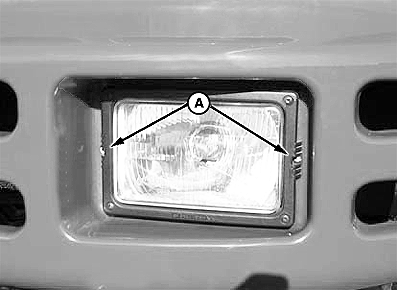

Remove the two outside middle retaining screws (A), pull the light assembly out and remove wiring harness connector.

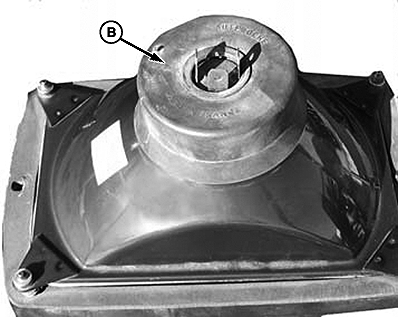

Remove the rubber insulator boot (B).

E63851-UN-01MAY12

E63852-UN-01MAY12

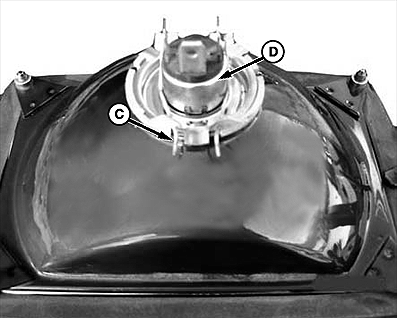

A - Retaining Screws

B - Rubber Boot

C - Wire Retainer

D - Bulb

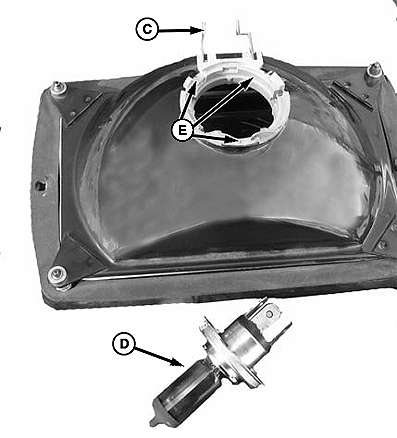

Remove the bulb (D).

To replace the lamp align lugs on new bulb with slots (E) in housing body and push into place.

Secure with wire retainer.

Replace rubber boot and install back to windrower.

E63854-UN-01MAY12

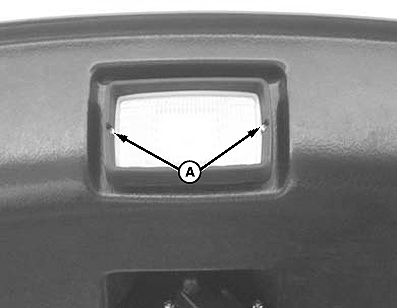

Forward Flood Light

E63853-UN-02MAY12

Remove two retaining screws (A) and remove light bezel.

Remove light from receptacle.

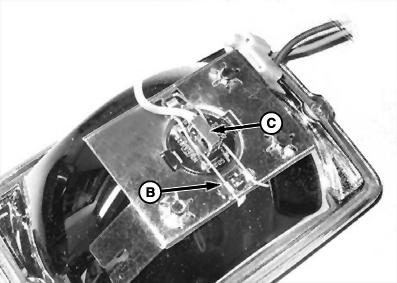

Pinch the wire retainer (B) and lift away from hooks.

Remove bulb (C) from body and pull wire from connector.

Match slots on new bulb with lugs in optical unit and insert bulb into unit.

Secure bulb with wire retainer (B).

Push wire into connector.

Follow the same basic procedure for the rear flood lights.

E63856-UN-01MAY12

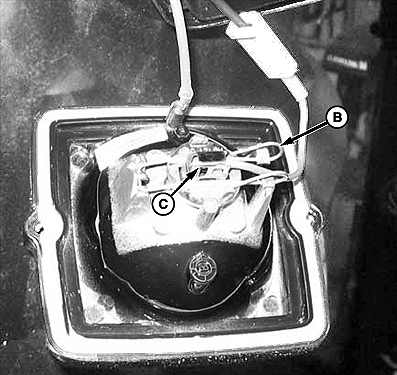

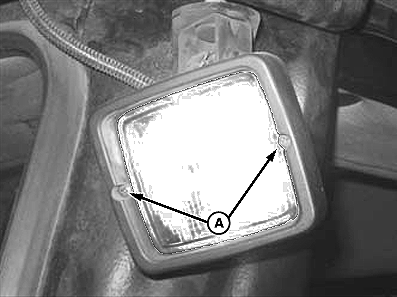

Rear Flood Lamp

E63857-UN-01MAY12

A - Retaining Screws

B - Wire Retainer

C - Bulb

E63858-UN-01MAY12

E63859-UN-01MAY12

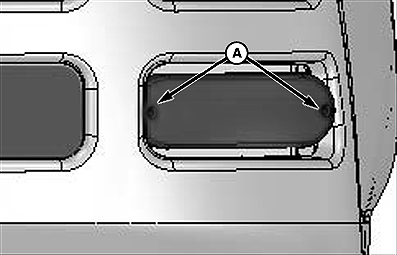

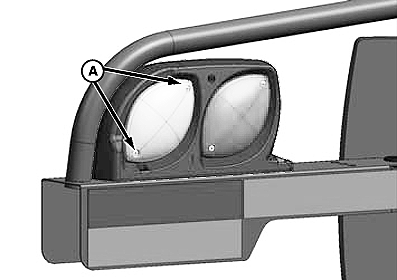

Remove the two screws (A) that hold the lens in place and remove lens.

Push and twist light bulb to remove from socket.

Replace lens and secure with screws.
