Hydraulic Oil Change

Drain and replace the hydraulic oil every 1500 hours of service or bi-annually.

Park the windrower on a firm, level surface, shut the engine off and remove the key.

1.

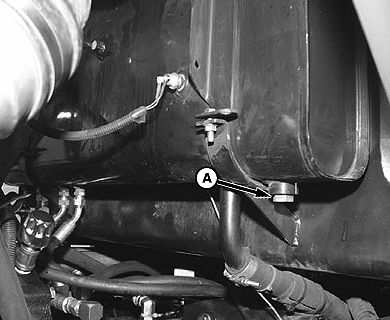

   E63845-UN-23MAY12

   Open engine compartment hood to highest position.

---




2. Place a suitable container under the hydraulic reservoir drain.

3. Slowly remove drain plug from bottom of hydraulic oil reservoir and allow to drain.

4. Clean off any metal debris that may have accumulated on magnetic drain plug.

5. Replace and tighten drain plug.

6. Add oil to the tank to the required level through the filler pipe.
