Replace Hydraulic Oil Filters

Replace the hydraulic oil filters every 500 hours of operation.

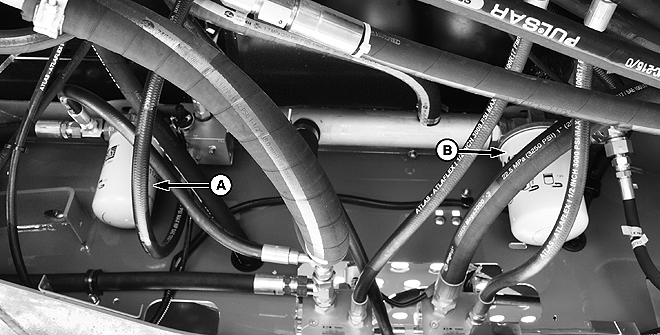

E63597-UN-11JUL12

W110 Hydraulic Filters

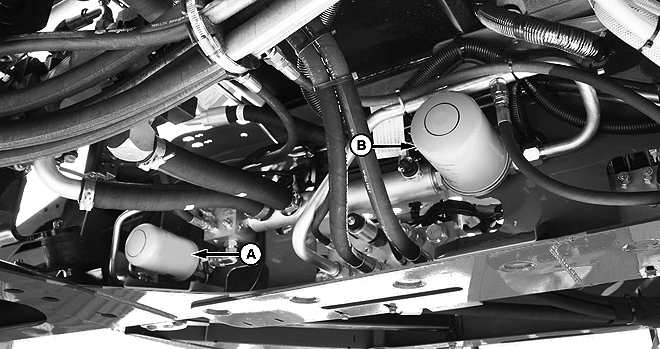

E63281-UN-11JUL12

W150 Hydraulic Filters

1. Park the windrower on firm, level ground, shut off the engine and remove the key.

2. IMPORTANT: Dispose of oil and filters in accordance with local and regional regulations.

   Clean the area around the filter heads, and lines to help eliminate the possibility of contamination. Be prepared to clean oil that may spill during this process. Keep filters upright as they are removed from filter head.

3. Unscrew the filters (A) and (B). A filter wrench may be used.

4. Clean the gasket surface of the filter heads.

5. Fill new filters with clean oil and apply a thin film of clean oil to the filter gaskets.

6. Screw the new filters onto the mount until the gasket contacts the filter head.

7. IMPORTANT: Do NOT use a filter wrench to install oil filter. Over-tightening can damage gasket and filter.

   Tighten filters and additional 1/2 turn by hand.

8. Start and run the windrower for a few minutes. Cycle the hydraulics a few times and then shut the engine off and remove the key.

9. Inspect the area around the filter heads and lines to confirm there are no leaks.

Shut off the engine and remove the key.
