Check Gearbox Oil Level

E63279
E63279-UN-23APR12

E63280
E63280-UN-18JUN12

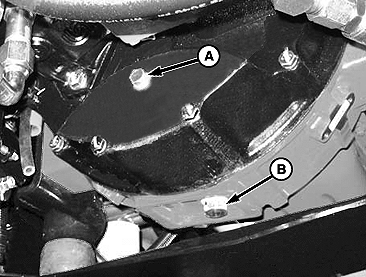

A - Gearbox Oil Inspection Plug

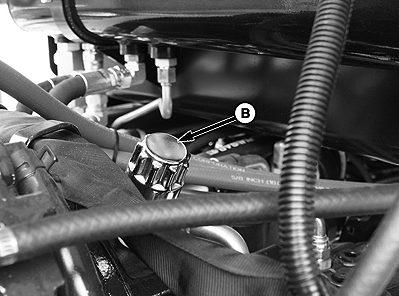

B - Breather/Fill Cap

On the W150 windrower check the level of the gearbox oil every 50 hours of operation.

Clean the area around the inspection plug (A) to help eliminate the possibility of contamination.

Remove the inspection plug (A). Oil should just be at the orifice.

If oil needs to be added, remove cap (B) and add oil. DO NOT overfill.

RC48509,0000577-19-20120910
