Clean Fresh Air Intake
W110 Cab Fresh Air Intake Service
Every 50 hours of operation clean the filter.
E63585-UN-25APR12

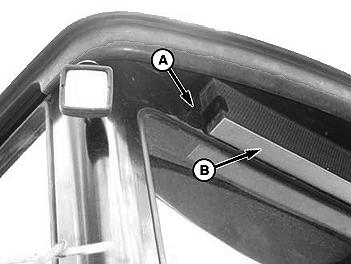

W110 Cab Fresh Air Filter
A - Knob
B - Filter
The fresh air filter is located under the cab roof behind the rear window of the W110 windrower.Loosen the knob (A) and slide retainer out to release filter (B).
CAUTION: Wear eye protection and preferably full face protection
before using compressed air to clean filters.
Tap filter gently on a flat surface, dirty side down.
Do not tap on a tire, as treads may damage pleats.
Inspect the filter by holding a bright light on one side of the element.
Compressed air may be used to blow against the inside of the element. Blowing air in the wrong direction may force air into the inside of the filter.
Look for holes, tears and check the condition of the gasket.
Re-install the filter and make sure the flow arrows point toward the cab.
W150 Cab Fresh Air Intake Service
Follow the same procedure to clean the W150 cab fresh air filter.
E63586-UN-26JUN12
E63587-UN-26JUN12

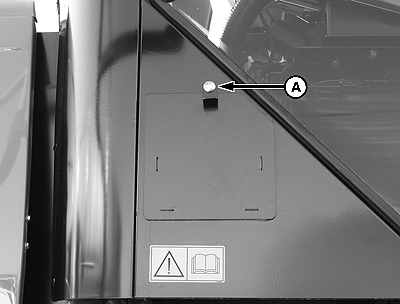

A - Latch

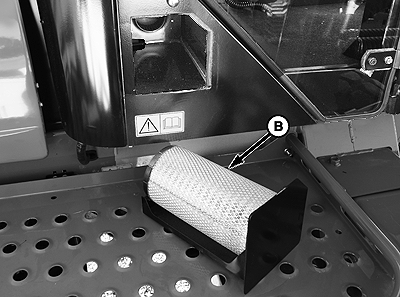

B - Filter
Rotate latch (A) and pull out the filter tray.Pull filter (B) out of tray and service.
Keep air pressure no higher than 420 kPa (60 psi).
|
RC48509,0000578-19-20120814 |
