50 Hour Grease Fittings

Grease these fitting ever 50 hours of operation.

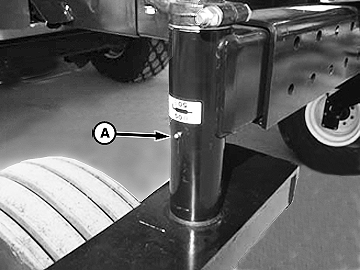

E63580-UN-25APR12

Caster Pivot (1 each side)

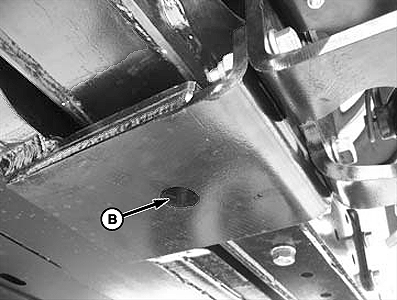

E63581-UN-25APR12

Walking Beam Pivot (1 fitting)

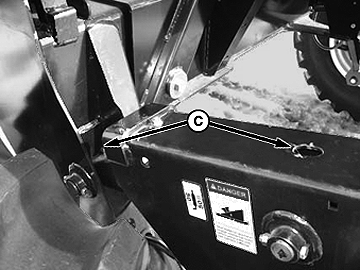

E63582-UN-25APR12

Top Lift Link Pivot (2 fittings each side)

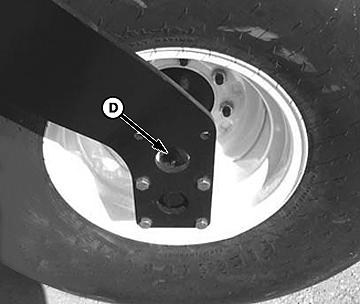

E63583-UN-25APR12

Forked Caster Spindle Bearing (2 fittings each side)

A - Caster Pivot

B - Walking Beam Pivot

C - Top Lift Link Pivot

D - Forked Caster Spindle Bearing
