Fuel Tank Vent Filter

Replace the fuel tank vent filter annually or each season.

The fuel tank is vented by a hose that is connected to the filler tube. The hose is connected to a filter that should be changed annually.

Filter is located on vent line against hydraulic oil reservoir.

Replace the filter as follows:

E63596
E63596-UN-26APR12

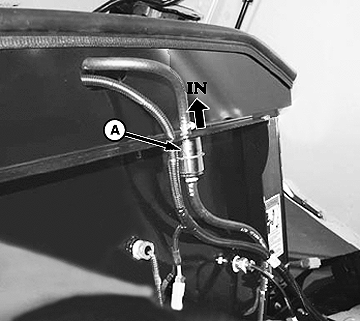

A - Fuel Vent Filter

  1. Park the windrower on firm, level ground, shut off the engine and remove the key.

  2. Open the engine compartment hood to the highest position.

  3. Release hose clamps and slide away from filter (A) with hoses.

  4. IMPORTANT: If filter has an arrow instead of an IN marking, arrow should point up.

    Install new filter through hole in frame and attach top hose onto filter. IN marking should face down.

  5. Attach lower hose to filter and secure both hoses with hose clamps.
