Service Interval Display

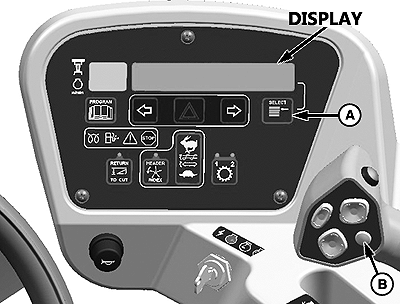

E63264-UN-18APR12

A - CDM Selector Switch

B - GSL Selector Switch

Use operating hours display as a guide when performing the required service interval on the windrower.

Use the selector switch on the CDM (A) or GSL (B) to display the windrower engine hours.
