Observe Lubrication Symbols

E61538-UN-18APR12

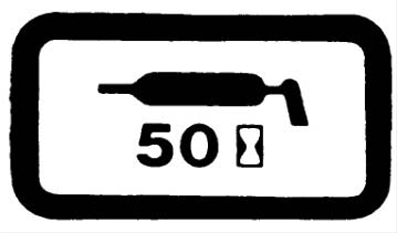

Grease Symbol

Greasing points are marked on the windrower by decals showing a grease gun and grease interval in hours of operation. Follow the hourly interval on the symbol.

Grease intervals on the windrower are at 50 hours and 200/250 hours.

Lubricate with John Deere SD POLYUREA grease or equivalent SAE multipurpose grease (unless otherwise specified). See Grease in FUEL, COOLANT, AND LUBRICANTS section of this manual.
