Draining Fuel Tank

E63595
E63595-UN-03MAY12

E63863
E63863-UN-26JUN12

E63594
E63594-UN-03MAY12

Draining the fuel may be necessary to remove old or contaminated fuel.

Stop engine and remove key.

Confirm that all components are cool to the touch.

Have a suitable container ready. Try to capture the first portion of fuel in a glass container for inspection.

CAUTION: Dispose of contaminated fuels properly. Handle fuel carefully. Do not smoke while handling fuels. Keep trouble lights away from fuels. Turn off engine and remove key before draining fuel.

Prevent fuel from contacting skin or painted surfaces. Fuel contact with skin will irritate the skin causing blistering.

  1. Open engine compartment hood to lowest position.

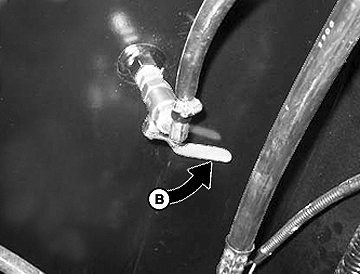

  2. Close fuel supply valve (B).

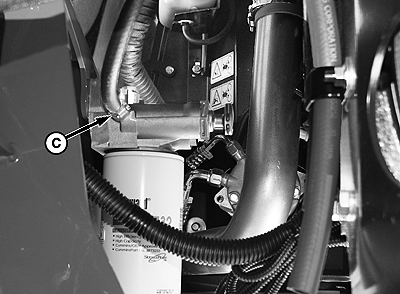

  3. Place container under fuel supply hose (C).

  4. Loosen clamp and pull hose off fitting.

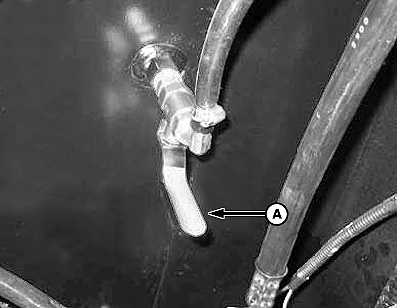

  5. Route hose to container and open valve (A).

  6. If necessary, add some clean fuel to tank to flush.

  7. Reattach hose to fitting and install clamp.

RC48509,0000594-19-20120814
