Fueling

Always stop the windrower and remove the key before fueling.

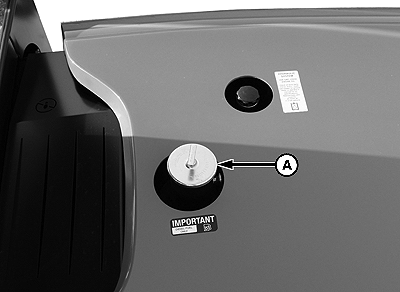

E63862-UN-26JUN12

A - Fuel Cap

CAUTION: Handle fuel carefully. Do not refuel the machine while smoking. Turn off engine and remove key before refueling windrower.

Do Not overfill fuel tank. Bodily injury can result from fuel splash back. Leakage can result from expansion of fuel. If the tank is filled too full, then left in direct sunlight or if temperature gets too hot, the tank will overflow.

Stand on the platform to access the fuel filler pipe.

Clean the area around the fuel cap (A).

Turn the cap handle counter clockwise until loose and remove cap.

Fill tank with diesel fuel.

Replace fuel tank cap (A) and turn cap handle clockwise until snug.
