Maintenance Platforms

Swing away platforms and stairs are designed on one side of the 110 and on both sides of the 150 windrower. These swing away platforms and stairs give the operator or service professional easy access to major components.

Opening and Closing Platforms

1.

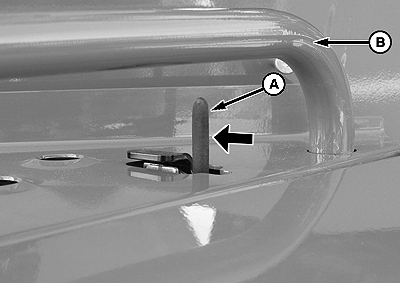

   E66108-UN-26JUN12

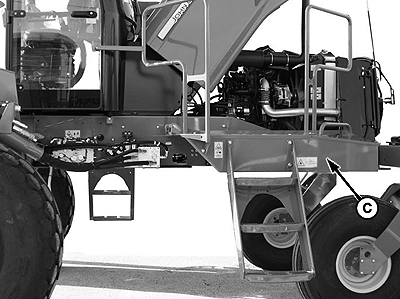

   E66110-UN-26JUN12

   A - Platform Release Latch

   B - Platform Handle

   C - Platform Aft

   Push latch (A) inward, grasp handle (B) and pull platform (C) toward walking beam until it stops and latch re-engages in open position.

---




2. To move platform back to closed position, release latch (A) and move platform forward until it stops and latch re-engages.

E66108-UN-26JUN12

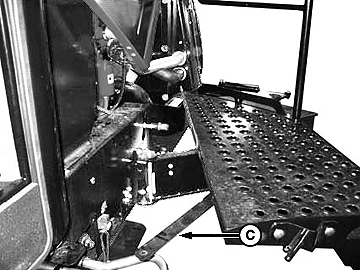

E66741-UN-15AUG12

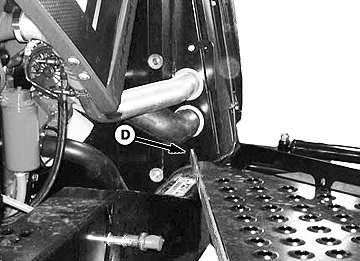

E66742-UN-15AUG12

A - Platform Release Latch

B - Platform Handle

C - Swing Link

D - Platform Corner

To improve access to the hydraulics plumbing or battery, the platforms can be swung away from the windrower. Left side shown.

1. Open engine compartment hood to lowest position.

   CAUTION: Failure to open hood will result in damage to the hood when the platform is repositioned.

2. Unlock latch (A) and move platform (B) toward open position but DO NOT lock in full aft position.

3. Remove nut and bolt at frame and swing link (C) clear of valve block or battery.

4. At the same time, pull front (cab-forward 150) end of platform away from frame while moving it towards the walking beam. Aft corner (D) of platform should project slightly into engine compartment when optimum opening is reached.

Close platform as follows:

1. Swing link (C) all the way forward.

2. Move platform front (cab-forward 150) end inboard, while moving it away from the walking beam.

3. Position link (C) on bracket and install bolt and nut. Tighten just enough so that link can still swivel on bracket.

4. Move platform to closed position, ensuring it is locked.

5. Close engine compartment hood.
