Cleaning Engine Compartment

Make a visual inspection of the engine compartment and coolers a part of the prestart routine.

Look for a build up of debris, chaff and obstructions or fire hazards. Clean the area as necessary.

Clean the engine compartment during the same interval as coolers.

CAUTION: A combination of dirt, oil and chaff in the engine compartment is a fire hazard. Do not clean engine compartment with engine running.

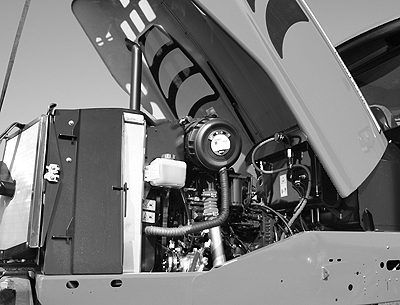

E66105-UN-26JUN12

Right Side Engine Compartment

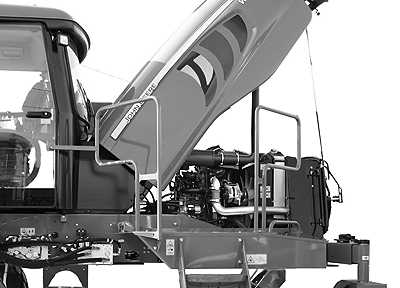

E66106-UN-26JUN12

Left Side Engine Compartment

Raise the engine hood to it’s highest position for engine compartment cleaning. Pay close attention to build up around exhaust components.
