Dome Light Bulb Replacement

To replace the dome light:

E66150
E66150-UN-26JUN12

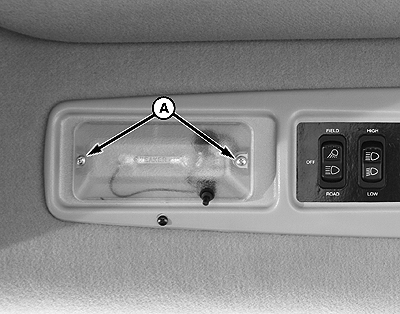

A - Dome Light Cover Screws

  1. Remove two screws (A) from plastic lens.

  2. Remove bulb.

  3. Replace lens cover and secure with two screws..

RC48509,00005A2-19-20120815
