System Main Fuse

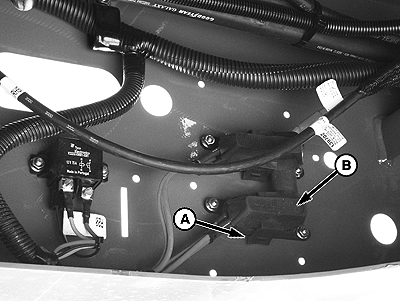

The 125 amp main fuse holders are located on the frame under the right side cab for the W110.

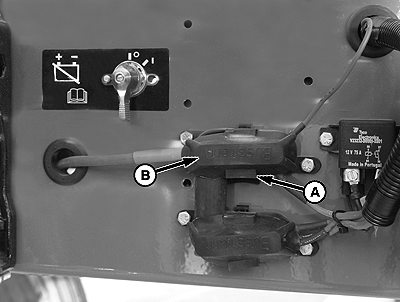

The 125 amp main fuse holders are located on the frame under the right cab-forward side platform beside the battery on the W150.

E66095
E66095-UN-25JUN12

W110 Main Fuse

E66096
E66096-UN-25JUN12

W150 Main Fuse

E63869
E63869-UN-03MAY12

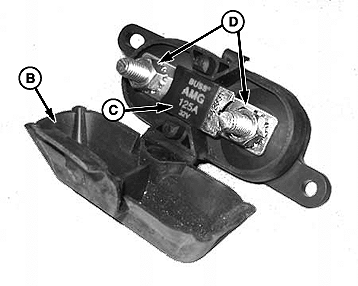

A - Cover Tab

B - Main Fuse Cover

C - Fuse

D - Retaining Nuts

To check the condition of the fuse, pull tab (A) and open cover (B).

Visually examine fuse (C) for indication of heat and melting.

To remove fuse (C) remove two retaining nuts (D) and pull fuse free from holder. Existing wiring may need to be pulled off stud first.

Install new fuse on studs and any existing wiring that was removed.

Reverse procedure to secure main fuse.
